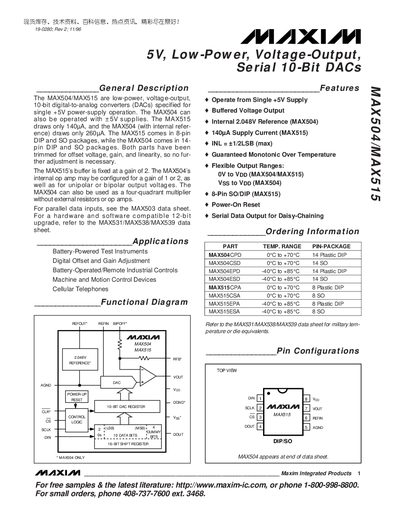

Maxim MAX504/MAX515 5V Low-Power Voltage-Output Serial 10-Bit DAC Datasheet
The MAX504 and MAX515 are low‑power, 5 V single‑supply, 10‑bit digital‑to‑analog converters (DACs) with serial input. The MAX515 draws only 140 µA while the MAX504 draws 260 µA and offers selectable gain and bipolar operation. Both devices provide buffered voltage output and are trimmed for offset, gain, and linearity.
The document provides absolute maximum ratings, electrical characteristics for single‑ and dual‑supply operation, pin descriptions, typical operating curves, and package dimensions. It also lists ordering information and application notes such as serial daisy‑chaining and hardware/software compatible upgrades.
Maxim MAX504 specifications
| Resolution | 10 bits |
|---|---|
| Supply Current (MAX515) | 140 µA |
| Supply Current (MAX504) | 260 µA |
| INL (Integral Non‑Linearity) | ±0.5 LSB (max) |
| DNL (Differential Non‑Linearity) | Guaranteed monotonic +1 LSB |
| Power Supply Voltage | 5 V (single‑supply) |
| Output Load Regulation | 0.5 LSB |
Source: Maxim MAX504/MAX515 5V Low-Power Voltage-Output Serial 10-Bit DAC Datasheet
All Maxim MAX504 documents by type
Ratings, dimensions and ordering codes, for selection and design work.
Questions answered in these manuals
What is the supply current of the MAX515?
The MAX515 draws only 140 µA of supply current.
From: Maxim MAX504/MAX515 5V Low-Power Voltage-Output Serial 10-Bit DAC Datasheet
What resolution do the MAX504 and MAX515 provide?
Both DACs provide a 10‑bit resolution.
From: Maxim MAX504/MAX515 5V Low-Power Voltage-Output Serial 10-Bit DAC Datasheet
What is the input voltage range for the MAX5042/MAX5043?
The devices operate from 20 V to 76 V input voltage.
Does the MAX5042 include a hot‑swap controller?
Yes, the MAX5042 includes an integrated hot‑swap controller; the MAX5043 does not.
What input voltage ranges does the MAX5038A/MAX5041A support?
The controllers accept either a +4.75 V to +5.5 V range or a +8 V to +28 V range.
From: Maxim MAX5038A/MAX5041A Dual‑Phase PWM Controller Datasheet
What is the maximum output current capability?
Both devices can deliver up to 60 A of output current.
From: Maxim MAX5038A/MAX5041A Dual‑Phase PWM Controller Datasheet
