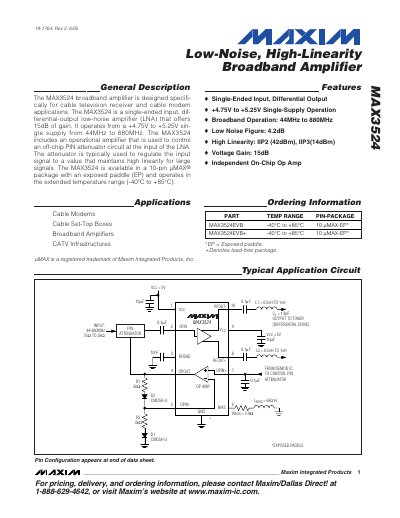

Maxim MAX3524 Broadband Amplifier Datasheet
The MAX3524 is a single‑ended input, differential‑output low‑noise amplifier (LNA) designed for cable television receivers and cable modem applications. It provides 15 dB of voltage gain, a low noise figure of about 4.2 dB, and high linearity (IIP2 ≈ 42 dBm, IIP3 ≈ 14 dBm) across a 44 MHz‑to‑880 MHz band.
The device operates from a single 4.75 V‑5.25 V supply, draws up to 95 mA, and includes an on‑chip operational amplifier for controlling an external PIN attenuator. Detailed pin descriptions, package outlines, and application notes are provided for PCB layout and biasing considerations.
Maxim MAX352 specifications
| Supply Voltage | 4.75 V to 5.25 V |
|---|---|
| Supply Current | 85 mA to 95 mA |
| Operating Frequency Range | 44 MHz to 880 MHz |
| Voltage Gain | 15 dB |
All Maxim MAX352 documents by type
Ratings, dimensions and ordering codes, for selection and design work.
Questions answered in these manuals
What supply voltage does the MAX3524 require?
It operates from a single supply of 4.75 V to 5.25 V.
What is the typical voltage gain of the MAX3524?
The amplifier provides a voltage gain of 15 dB.
What is the typical on‑resistance of the MAX351/352/353 switches?
The typical on‑resistance is less than 22 Ω (maximum 35 Ω).
From: Maxim MAX351/MAX352/MAX353 Precision Quad SPST Analog Switches Datasheet
How much ESD protection do the switches provide?
They are rated for greater than 2000 V ESD per IEC Method 3015.7.
From: Maxim MAX351/MAX352/MAX353 Precision Quad SPST Analog Switches Datasheet
