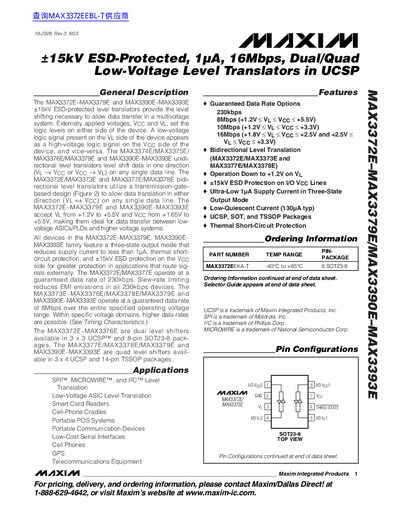

Maxim MAX3372E-MAX3379E/MAX3390E-MAX3393E Datasheet
This Maxim Integrated datasheet describes the family of +15 kV ESD‑protected level translators that shift logic levels between low‑voltage ASIC/PLD domains and higher‑voltage systems. The devices support bidirectional or unidirectional translation, three‑state output, ultra‑low supply current, and thermal short‑circuit protection.
The document provides absolute maximum ratings, electrical characteristics, timing parameters, typical operating curves, and detailed package drawings for the dual‑ and quad‑channel variants offered in UCSP, SOT‑23‑8, and TSSOP packages.
Maxim MAX3379E specifications
| VL Supply Range | 1.2 V – 5.5 V |
|---|---|
| VCC Supply Range | 1.65 V – 5.5 V |
| Maximum Data Rate (MAX3372E/MAX3377E) | 230 kbps |
| Maximum Data Rate (MAX3373E‑MAX3379E / MAX3390E‑MAX3393E) | 8 Mbps (up to 16 Mbps in higher‑voltage domains) |
| Package Options (MAX3372E‑MAX3376E) | 3 × 3 UCSP and 8‑pin SOT23‑8 |
| Package Options (MAX3377E‑MAX3379E / MAX3390E‑MAX3393E) | 3 × 4 UCSP and 14‑pin TSSOP |
All Maxim MAX3379E documents by type
Ratings, dimensions and ordering codes, for selection and design work.
Questions answered in these manuals
What is the maximum data rate for the MAX3372E and MAX3377E devices?
They operate at a guaranteed data rate of 230 kbps.
What voltage ranges are supported on the VL and VCC pins?
VL is accepted from 1.2 V to 5.5 V, and VCC from 1.65 V to 5.5 V.
What is the guaranteed data rate for the MAX3372E/MAX3377E devices?
The MAX3372E and MAX3377E operate at a guaranteed data rate of 230 kbps.
From: Maxim MAX3372E-MAX3379E and MAX3390E-MAX3393E Datasheet
What ESD protection is provided on the VCC side?
The devices provide +15 kV ESD protection on the VCC side (Human Body Model).
From: Maxim MAX3372E-MAX3379E and MAX3390E-MAX3393E Datasheet
What is the ESD protection rating of these level translators?
They provide +15 kV ESD protection on the I/O VCC lines.
What is the guaranteed data rate for the MAX3372E?
The MAX3372E operates at a guaranteed data rate of 230 kbps.
