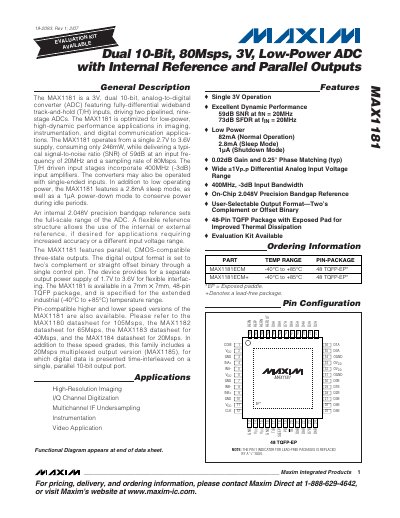

Maxim MAX1181 Analog-to-Digital Converter Datasheet
The MAX1181 is a 3 V, dual 10‑bit analog‑to‑digital converter featuring fully‑differential wideband track‑and‑hold inputs and two pipelined nine‑stage ADCs. It operates from a single 2.7 V to 3.6 V supply and offers low‑power modes including a 2.8 mA sleep and 1 µA shutdown.
Key features include an internal 2.048 V precision bandgap reference, selectable output format (two’s complement or offset binary), parallel CMOS three‑state outputs, and a 48‑pin TQFP‑EP package suitable for extended‑temperature industrial applications.
Maxim MAX1181 specifications
| Supply Voltage Range | 2.7 V to 3.6 V |
|---|---|
| Power Consumption (Normal) | 246 mW |
| Sleep Mode Current | 2.8 mA |
| Shutdown Mode Current | 1 µA |
| Internal Reference Voltage | 2.048 V |
| Output Format | Two’s complement or offset binary |
