Start here

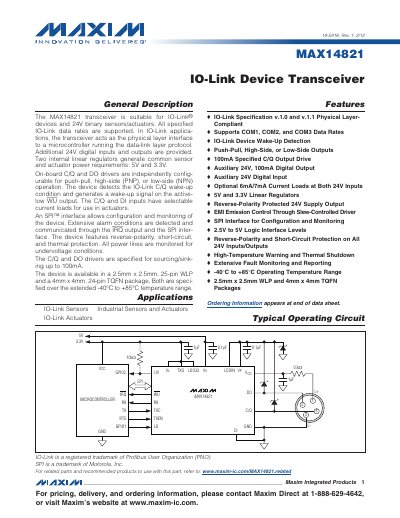

Maxim MAX14821 IO-Link Device Transceiver Datasheet
The MAX14821 is an IO‑Link device transceiver designed for use with 24 V binary sensors and actuators. It provides a physical‑layer interface to a microcontroller and includes configurable push‑pull, high‑side (PNP) or low‑side (NPN) drivers, reverse‑polarity protection, and extensive fault monitoring.
Key specifications include dual linear regulators (5 V and 3.3 V), selectable 100 mA output drive, operation over –40 °C to +85 °C, and SPI‑compatible configuration. The device is offered in two compact packages: a 2.5 mm × 2.5 mm WLP and a 4 mm × 4 mm TQFN.
Maxim MAX1482 specifications
| Operating Temperature Range | -40 °C to +85 °C |
|---|---|
| Output Drive Current | Up to 100 mA source/sink |
| Package Types | 2.5 mm × 2.5 mm WLP, 4 mm × 4 mm TQFN |
| Maximum SPI Clock Rate | 12 MHz |
All Maxim MAX1482 documents by type
Ratings, dimensions and ordering codes, for selection and design work.
Questions answered in these manuals
What is the maximum SPI clock rate for the MAX14821?
The device supports an SPI clock rate up to 12 MHz.
Which package options are available for the MAX14821?
It is offered in a 2.5 mm × 2.5 mm 25‑pin WLP and a 4 mm × 4 mm 24‑pin TQFN package.
What is the maximum driver output current of the MAX14824?
The driver can source at least 300 mA of load current.
What temperature range can the MAX14824 operate in?
It operates from –40 °C up to +105 °C.
How much current can the C/Q driver source or sink?
The C/Q driver can source or sink up to 300 mA.
What is the maximum SPI clock frequency for the MAX14820?
The SPI interface supports a maximum clock rate of 12 MHz.
