Start here

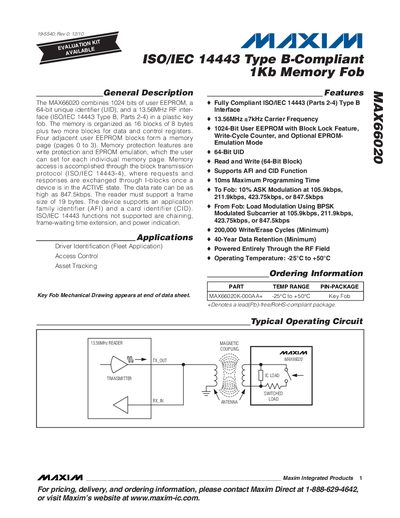

Maxim MAX66020 Handbook
The MAX66020 combines a 1024‑bit user EEPROM, a 64‑bit unique identifier (UID) and a 13.56 MHz ISO/IEC 14443 Type B RF interface in a plastic key fob. Memory is organized into 16 blocks of 8 bytes, with page‑level write protection and optional EPROM‑emulation mode. Communication uses the ISO/IEC 14443‑4 block transmission protocol, supporting data rates up to 847.5 kbps.
The device is powered entirely from the RF field, operates from –25 °C to +50 °C, and offers a minimum of 200 000 write/erase cycles and 40 years of data retention. It includes features such as AFI and CID support, a 10 ms maximum programming time, and a 1 ms power‑up time.
Maxim MAX6602 specifications
| User EEPROM size | 1024 bits |
|---|---|
| Unique identifier (UID) | 64‑bit |
| RF interface frequency | 13.56 MHz |
| Maximum data rate | 847.5 kbps |
| Write/Erase endurance | ≥ 200 000 cycles |
| Data retention | ≥ 40 years |
| Operating temperature range | -25 °C to +50 °C |
| Programming time | 10 ms (max) |
| Power‑up time | 1 ms |
Source: Maxim MAX66020 Handbook
All Maxim MAX6602 documents by type
Ratings, dimensions and ordering codes, for selection and design work.
Questions answered in these manuals
What is the maximum data rate of the MAX66020?
The device can communicate at data rates up to 847.5 kbps.
From: Maxim MAX66020 Handbook
How many write/erase cycles are guaranteed for the EEPROM?
The EEPROM is rated for a minimum of 200 000 write/erase cycles.
From: Maxim MAX66020 Handbook
What communication interface does the MAX6602 use?
It uses a 2‑wire SMBus‑compatible serial interface for reading temperature data and programming thresholds.
From: Maxim MAX6602 Five-Channel Precision Temperature Monitor Datasheet
How many temperature channels are available on the MAX6602?
The device provides five temperature channels – one local sensor and four remote diode‑connected channels.
From: Maxim MAX6602 Five-Channel Precision Temperature Monitor Datasheet
