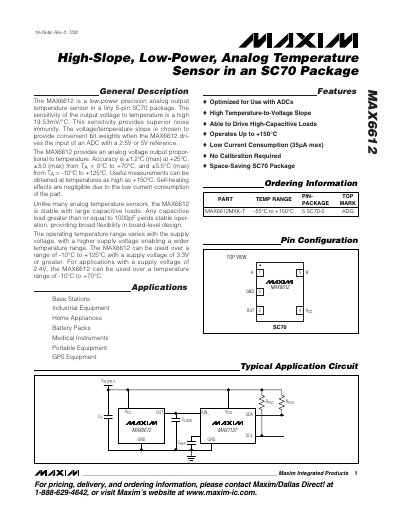

Maxim MAX6612 High-Slope Low-Power Analog Temperature Sensor Datasheet
The MAX6612 is a precision analog output temperature sensor packaged in a 5‑pin SC70. It provides a linear voltage output proportional to temperature with a high sensitivity of 19.53 mV/°C and a 400 mV offset at 0 °C, enabling direct interfacing to ADCs.
Key features include operation over a wide temperature range (‑55 °C to +150 °C), low supply current (35 µA no‑load), ability to drive high‑capacitive loads (≥1000 pF), and a small footprint. Typical applications are base stations, industrial equipment, home appliances, and other systems requiring accurate temperature monitoring.
Maxim MAX6612 specifications
| Supply voltage range | 2.4 V to 5.5 V |
|---|---|
| No‑load supply current | 35 µA |
| Output voltage at 0 °C | 400 mV |
| Operating temperature range | -55 °C to +150 °C |
| Turn‑on time (CLOAD=1000 pF) | 80 µs |
| Shutdown current (VCC < 0.8 V) | 1 µA |
Source: Maxim MAX6612 High-Slope Low-Power Analog Temperature Sensor Datasheet
All Maxim MAX6612 documents by type
Ratings, dimensions and ordering codes, for selection and design work.
Questions answered in these manuals
What is the temperature‑to‑voltage conversion formula for the MAX6612?
V_OUT = 0.40 V + (0.01953 V/°C × T) – (2 × 10⁻⁶ × T²).
From: Maxim MAX6612 High-Slope Low-Power Analog Temperature Sensor Datasheet
How much current does the MAX6612 draw with no load?
The device draws 35 µA of supply current when no load is connected.
From: Maxim MAX6612 High-Slope Low-Power Analog Temperature Sensor Datasheet
What is the memory size of the MAX66120?
The MAX66120 provides 1024 bits (1 Kb) of user EEPROM organized as 16 blocks of 8 bytes.
From: Maxim MAX66120 ISO 15693‑Compliant 1Kb Memory Fob Datasheet
How many write/erase cycles can the EEPROM endure?
The EEPROM can endure a minimum of 200,000 write/erase cycles.
From: Maxim MAX66120 ISO 15693‑Compliant 1Kb Memory Fob Datasheet
