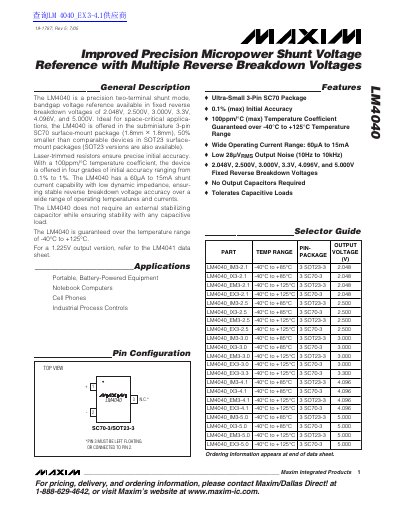

Maxim LM4040 Precision Shunt Voltage Reference Datasheet
The LM4040 is an improved precision micropower shunt voltage reference designed for space-critical applications. It offers six fixed reverse breakdown voltages: 2.048V, 2.500V, 3.000V, 3.3V, 4.096V, and 5.000V. The device is available in a subminiature 3-pin SC70 surface-mount package (1.8mm x 1.8mm), which is 50% smaller than comparable SOT23 packages.
Laser-trimmed resistors ensure precise initial accuracy with four grades ranging from 0.1% to 1%. The device features a temperature coefficient of 100ppm/°C and operates over a wide range of -40°C to +125°C. It supports shunt currents from 60µA to 15mA without requiring an external stabilizing capacitor.
Maxim LM4040 specifications
| Reverse Breakdown Voltages | 2.048V, 2.500V, 3.000V, 3.3V, 4.096V, and 5.000V |
|---|---|
| Temperature Coefficient | 100ppm/°C |
| Initial Accuracy Grades | 0.1% to 1% |
| Shunt Current Range | 60µA to 15mA |
| Operating Temperature Range (Extended) | -40°C to +125°C |
Source: Maxim LM4040 Precision Shunt Voltage Reference Datasheet
All Maxim LM4040 documents by type
Ratings, dimensions and ordering codes, for selection and design work.
Questions answered in these manuals
Does the LM4040 require an external stabilizing capacitor?
No, it does not require an external stabilizing capacitor while ensuring stability with any capacitive load.
From: Maxim LM4040 Precision Shunt Voltage Reference Datasheet
What is the maximum operating temperature range for the LM4040?
The device is guaranteed to operate over a temperature range of -40°C to +125°C.
From: Maxim LM4040 Precision Shunt Voltage Reference Datasheet
What is the LM4040 and what is it used for?
The LM4040 is a precision two-terminal shunt mode, bandgap voltage reference ideal for space-critical applications.
From: Maxim LM4040 Improved Precision Micropower Shunt Voltage Reference Datasheet
What are the available fixed reverse breakdown voltages for the LM4040?
The device is available in fixed reverse breakdown voltages of 2.048V, 2.500V, 3.000V, 3.3V, 4.096V, and 5.000V.
From: Maxim LM4040 Improved Precision Micropower Shunt Voltage Reference Datasheet
What fixed output voltages are available for the LM4040?
The LM4040 provides fixed reverse‑breakdown voltages of 2.048 V, 2.500 V, 3.000 V, 3.3 V, 4.096 V and 5.000 V.
From: Maxim LM4040 Improved Precision Micropower Shunt Voltage Reference Datasheet
What is the operating temperature range of the LM4040?
It is guaranteed to operate from –40 °C up to +125 °C.
From: Maxim LM4040 Improved Precision Micropower Shunt Voltage Reference Datasheet
