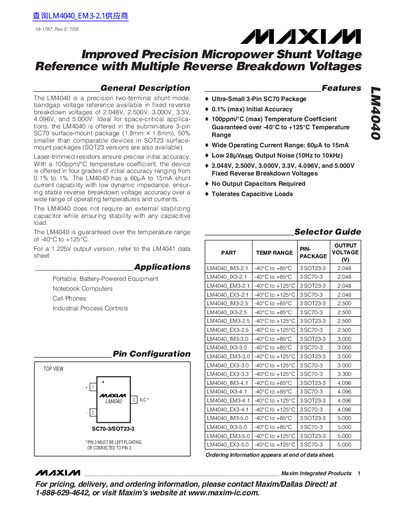

LM4040 is a precision two-terminal shunt mode, bandgap voltage reference available in fixed reverse breakdown voltages of 2.048V, 2.500V, 3.000V, 3.3V, 4.096V, and 5.000V. Ideal for space-critical applications, the LM4040 is offered in the subminiature 3-pin SC70 surface-mount package (1.8mm ✕ 1.8mm), 50% smaller than comparable devices in SOT23 surface- mount packages (SOT23 versions are also available). Laser-trimmed resistors ensure precise initial accuracy. With a 100ppm/°C temperature coefficient, the device is offered in four grades of initial accuracy ranging from 0.1% to 1%. The LM4040 has a 60µA to 15mA shunt current capability with low dynamic impedance, ensuring stable reverse breakdown voltage accuracy over a wide range of operating temperatures and currents. The LM4040 does not require an external stabilizing capacitor while ensuring stability with any capacitive load. The LM4040 is guaranteed over the temperature range of -40°C to +125°C. For a 1.225V output version, refer to the LM4041 data sheet.
The LM4040 is a precision two-terminal shunt mode, bandgap voltage reference available in fixed reverse breakdown voltages of 2.048V, 2.500V, 3.000V, 3.3V, 4.096V, and 5.000V. It is ideal for space-critical applications and is offered in the subminiature 3-pin SC70 surface-mount package, which is 50% smaller than comparable devices in SOT23 packages.
Laser-trimmed resistors ensure precise initial accuracy with a 100ppm/°C temperature coefficient. The device is offered in four grades of initial accuracy ranging from 0.1% to 1% and is guaranteed over the temperature range of -40°C to +125°C. It does not require an external stabilizing capacitor while ensuring stability with any capacitive load.
| Reverse Breakdown Voltages | 2.048V, 2.500V, 3.000V, 3.3V, 4.096V, and 5.000V |
|---|---|
| Initial Accuracy | 0.1% to 1% |
| Temperature Coefficient | 100ppm/°C |
| Operating Temperature Range | -40°C to +125°C |
| Operating Current Range | 60µA to 15mA |
| Package Type | 3-pin SC70 or SOT23 |
The LM4040 is a precision two-terminal shunt mode, bandgap voltage reference ideal for space-critical applications.
The device is available in fixed reverse breakdown voltages of 2.048V, 2.500V, 3.000V, 3.3V, 4.096V, and 5.000V.
The LM4040 is guaranteed over the temperature range of -40°C to +125°C.
No, the LM4040 does not require an external stabilizing capacitor while ensuring stability with any capacitive load.
