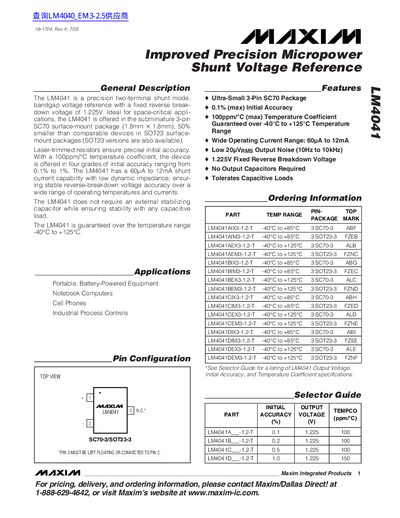

Maxim LM4041 Improved Precision Micropower Shunt Voltage Reference Datasheet
The LM4041 is a precision two-terminal shunt mode bandgap voltage reference designed for space-critical applications. It features a fixed reverse breakdown voltage of 1.225V and is offered in a subminiature 3-pin SC70 surface-mount package or SOT23 versions. The device operates over a temperature range of -40°C to +125°C (depending on grade) and does not require an external stabilizing capacitor.
Read onlineMaxim LM4041 specifications
| Reverse Breakdown Voltage | 1.225V |
|---|---|
| Operating Temperature Range | -40°C to +125°C |
| Initial Accuracy (Max) | 0.1% |
| Temperature Coefficient | 100ppm/°C (max) |
| Operating Current Range | 60µA to 12mA |
| Output Noise (RMS) | 20µV |
Source: Maxim LM4041 Improved Precision Micropower Shunt Voltage Reference Datasheet
All Maxim LM4041 documents by type
Ratings, dimensions and ordering codes, for selection and design work.
Questions answered in these manuals
What is the fixed output voltage of the LM4041?
The device maintains a fixed reverse breakdown voltage of 1.225V.
From: Maxim LM4041 Improved Precision Micropower Shunt Voltage Reference Datasheet
What is the operating temperature range for the LM4041?
The device is guaranteed to operate from -40°C to +125°C.
From: Maxim LM4041 Improved Precision Micropower Shunt Voltage Reference Datasheet
What is the fixed reverse breakdown voltage of the LM4041?
The LM4041 has a fixed reverse breakdown voltage of 1.225 V.
From: Maxim LM4041 Improved Precision Micropower Shunt Voltage Reference Datasheet
What is the temperature coefficient of the LM4041?
The device’s temperature coefficient is 100 ppm/°C (maximum).
From: Maxim LM4041 Improved Precision Micropower Shunt Voltage Reference Datasheet
