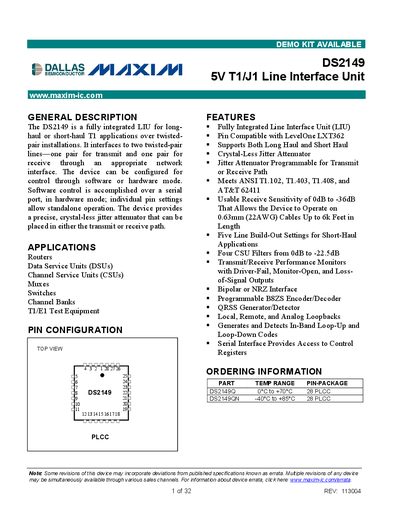

MAXIM DS2149 5V T1/J1 Line Interface Unit Manual
The DS2149 is a fully integrated line interface unit (LIU) for short‑haul and long‑haul T1/J1 applications. It supports both long‑haul and short‑haul line build‑outs, includes a crystal‑less jitter attenuator, and can be controlled via a serial interface or hardware pins.
This manual covers the device’s detailed description, operating modes, register definitions, transmitter and receiver functions, jitter attenuation, hardware and software modes, diagnostic features, network interface, DC characteristics, and package information. It also provides pin‑out diagrams, timing specifications, and configuration tables.
Maxim DS2149 specifications
| Extended Operating Temperature Range | -40°C to +85°C |
|---|---|
| Package Type | 28 PLCC |
| Receive Sensitivity | 0dB to -36dB |
