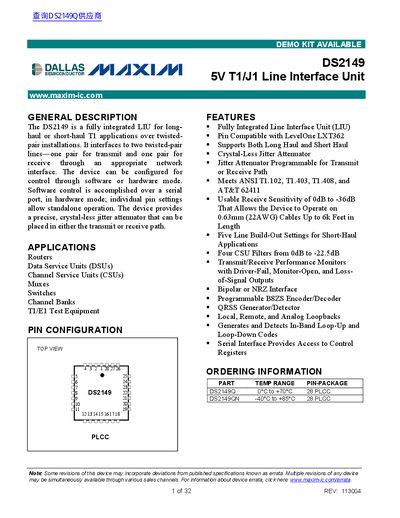

DS2149 is a fully integrated LIU for long-haul or short-haul T1 applications over twisted-pair installations. It interfaces to two twisted-pair lines—one pair for transmit and one pair for receive through an appropriate network interface. The device can be configured for control through software or hardware mode. Software control is accomplished over a serial port, in hardware mode; individual pin settings allow standalone operation. The device provides a precise, crystal-less jitter attenuator that can be placed in either the transmit or receive path.
The DS2149 is a fully integrated Line Interface Unit (LIU) designed for long-haul or short-haul T1 applications over twisted-pair installations. It interfaces to two twisted-pair lines, one for transmit and one for receive, through an appropriate network interface. The device can be configured for control through software or hardware mode.
| Extended Operating Temperature Range | -40°C to +85°C |
|---|---|
| Package Type | 28 PLCC |
| Receive Sensitivity | 0dB to -36dB |
The device can operate with a receive sensitivity ranging from 0dB to -36dB.
The unit provides five line build-out settings: 0dB, -7.5dB, -15dB, and -22.5dB.
