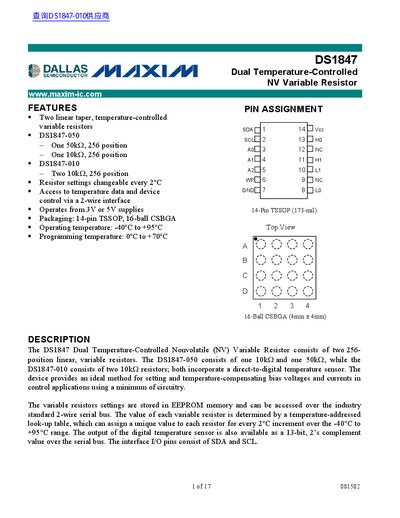

Maxim DS1847 Dual Temperature-Controlled Variable Resistor Datasheet
The DS1847 integrates two 256‑position linear variable resistors (10 kΩ or 50 kΩ) with a direct‑to‑digital temperature sensor. Resistor values are stored in EEPROM and accessed via a standard 2‑wire I²C‑compatible interface, allowing temperature‑compensated bias settings with minimal external circuitry.
The device operates from 3 V to 5.5 V and functions over a temperature range of –40 °C to +95 °C. It is available in 14‑pin TSSOP and 16‑ball CSBGA packages, and supports programming of lookup tables to define resistance versus temperature curves.
Maxim DS1847 specifications
| Supply voltage range | 3.0 V to 5.5 V |
|---|---|
| Operating temperature range | -40 °C to +95 °C |
| Package options | 14‑pin TSSOP, 16‑ball CSBGA |
| Number of resistor positions | 256 per resistor |
| Temperature step for lookup table | Every 2 °C |
Source: Maxim DS1847 Dual Temperature-Controlled Variable Resistor Datasheet
All Maxim DS1847 documents by type
Ratings, dimensions and ordering codes, for selection and design work.
Questions answered in these manuals
What supply voltage does the DS1847 require?
The device operates from 3.0 V up to 5.5 V.
From: Maxim DS1847 Dual Temperature-Controlled Variable Resistor Datasheet
How many positions are available for each variable resistor?
Each resistor provides 256 discrete positions.
From: Maxim DS1847 Dual Temperature-Controlled Variable Resistor Datasheet
What supply voltage range does the DS1847 support?
The device operates from 3.0 V to 5.5 V.
From: Maxim DS1847 Dual Temperature-Controlled NV Variable Resistor Datasheet
How many positions are available for each resistor?
Each resistor provides 256 programmable positions.
From: Maxim DS1847 Dual Temperature-Controlled NV Variable Resistor Datasheet
