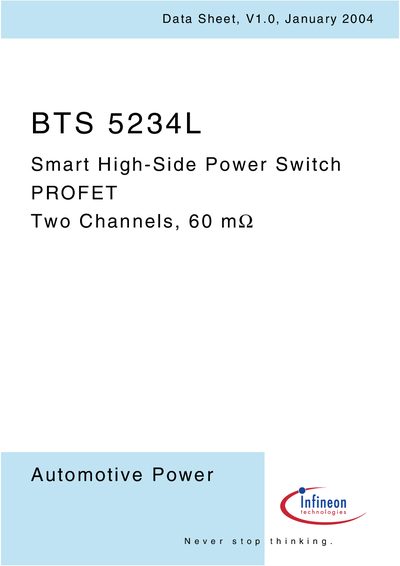

The BTS 5234L is a high performance automotive smart high-side power switch with two channels and a low on-resistance of 60 mΩ.
The BTS 5234L is a dual‑channel high‑side power switch in a P‑DSO‑12‑2 package that integrates a range of protective functions such as reverse‑battery, overload, short‑circuit, and over‑voltage protection. It uses a vertical N‑channel MOSFET with a charge pump and offers CMOS‑compatible logic inputs.
Key features include very low standby current, independent logic ground, enhanced IntelliSense diagnostic pins (IS1, IS2) with a sense‑enable pin (SEN), and a built‑in ground resistor to minimise external components. The device is suited for automotive applications, replacing electromechanical relays, fuses and discrete driver circuits.
| Operating voltage range | 4.5‑28 V |
|---|---|
| Over‑voltage protection | 41 V |
| Nominal load current (one channel active) | 3.5 A |
| Current limitation (continuous) | 23 A |
| Standby current (device OFF) | 2.5 HA |
The device is a dual‑channel high‑side power switch, with each channel having an on‑state resistance of 60 mΩ.
