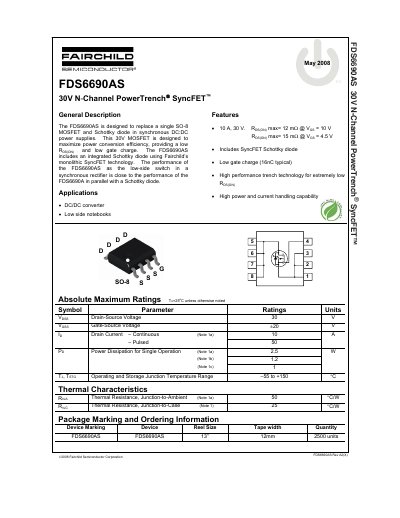

FDS6690AS 30V N-Channel PowerTrench® SyncFET™ is a high performance field effect transistor with low RDS(ON) and low gate charge. It includes an integrated Schottky diode using Fairchild's monolithic SyncFET technology.
The FDS6690AS is a 30V N-Channel MOSFET designed to replace a single SO-8 MOSFET and Schottky diode in synchronous DC/DC power supplies. It utilizes Fairchild's monolithic SyncFET technology to maximize power conversion efficiency by providing low on-resistance and low gate charge. The device includes an integrated Schottky diode, making it suitable for use as a low-side switch in synchronous rectifier applications.
| Drain-Source Voltage | 30 V |
|---|---|
| Gate Charge (Typical) | 16 nC |
| Operating Junction Temperature | -55 to +150 °C |
| Package | SO-8 |
The maximum continuous drain current is 10 A.
The maximum power dissipation for single operation is 2.5 W.
The operating and storage junction temperature range is -55 to +150 °C.
