RC200 is a multi-function tester from Extech Corporation. It can measure AC/DC voltage, resistance, capacitance, continuity and diode, with 6000-count LCD, auto/manual ranging, overrange and low battery indicators, auto power off. It comes with two AG13/LR44 batteries, test leads, SMD tweezer tip and carrying case.

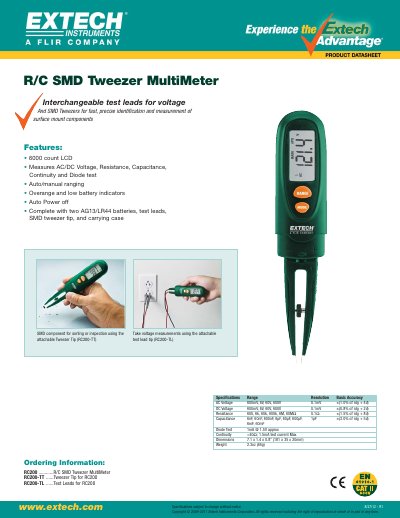

The Extech RC200 SMD Tweezer MultiMeter is a versatile measurement tool featuring a 6000 count LCD display. It supports both automatic and manual ranging and includes indicators for overrange and low battery conditions. The device automatically powers off to conserve energy.
| Display | 6000 count LCD |
|---|---|
| AC Voltage Range | 600mV, 6V, 60V, 600V |
| AC Voltage Accuracy | ±(1.0% of rdg + 4d) |
| DC Voltage Range | 600mV, 6V, 60V, 600V |
| DC Voltage Accuracy | ±(0.8% of rdg + 2d) |
| Resistance Range | 600, 6k, 60k, 600k, 6M, 60MΩ |
| Resistance Accuracy | ±(1.5% of rdg + 8d) |
| Capacitance Range | 6nF, 60nF, 600nF, 6μF, 60μF, 600μF, 1pF |
| Capacitance Accuracy | ±(3.0% of rdg + 5d) |
| Diode Test Current | 1mA @ 1.5V approx |
| Continuity Threshold | <40Ω |
| Continuity Test Current | 1.5mA |
| Dimensions | 7.1 x 1.4 x 0.8" (181 x 35 x 20mm) |
| Weight | 2.3oz (65g) |
It is an R/C SMD Tweezer MultiMeter used for sorting or inspecting SMD components.
The meter comes complete with two AG13/LR44 batteries.
The maximum AC voltage range is 600V.
