Key facts
- Brand
- EXTECH
- Model
- RHT10
- Industry
- Industrial
- Documents
- 2
- Languages
- EN
- Last added
- 2012-08-01
Start here

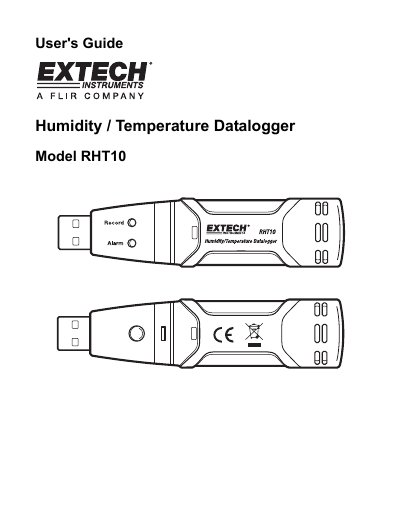

Extech RHT10 Humidity Temperature Datalogger User's Guide
The Extech RHT10 is a handheld data logger designed to measure and store up to 32,000 readings (16,000 temperature and 16,000 relative humidity). It features selectable sampling rates from 2 seconds to 24 hours, user-programmable alarm thresholds for high/low limits, and status indication via Red/Yellow and Green LEDs. The device is powered by a long-life lithium battery capable of logging for approximately one year under typical conditions.
The manual details the setup process, including installing the supplied Windows PC software and USB drivers. Users can configure logging parameters such as sample points and LED flash cycles to conserve battery power. Data can be downloaded via a USB interface, viewed graphically, and exported in various formats including Excel, Text, or Bitmap files.
EXTECH RHT10 specifications
| Memory Capacity | 32,000 readings (16,000 temperature and 16,000 humidity) |
|---|---|
| Relative Humidity Range | 0 to 100%RH |
| Temperature Range | -40 to +70°C (-40 to +158°F) |
| Sampling Rate | 2s to 24hr |
| Battery Type | 3.6V Lithium (1/2 AA) |
| Operating Temperature | -35 to 80°C (-31 to 176°F) |
| Battery Life | 1 year (typ.) |
Source: Extech RHT10 Humidity Temperature Datalogger User's Guide
All EXTECH RHT10 documents by type
Day-to-day operation, settings and troubleshooting. Start here if the product is already set up.
Questions answered in these manuals
What is the maximum number of readings the RHT10 can store?
The device has memory for up to 32,000 readings.
From: Extech RHT10 Humidity Temperature Datalogger User's Guide
How long does the battery typically last?
The lithium battery can typically allow logging for one year.
From: Extech RHT10 Humidity Temperature Datalogger User's Guide
What is the maximum number of humidity and temperature readings the RHT10 can store?
The device records up to 16,000 readings for each parameter.
From: EXTECH RHT10 Humidity Temperature USB Datalogger Product Datasheet
What are the selectable data sampling rates for the RHT10?
The selectable data sampling rate includes 2s, 5s, 10s, 30s, 1m, 5m, 10m, 30m, thr, 2hr, 3hr, 6hr, 12hr, and 24hr.
From: EXTECH RHT10 Humidity Temperature USB Datalogger Product Datasheet
