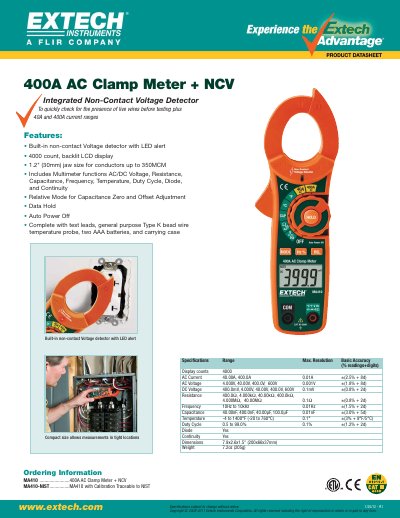

The Extech MA410 400A AC Clamp Meter + NCV is a powerful digital multimeter that combines a non-contact voltage detector with 40A and 400A current ranges. It also includes multimeter functions such as AC/DC Voltage, Resistance, Capacitance, Frequency, Temperature, Duty Cycle, Diode, and Continuity.
The EXTECH MA410 is a compact 400A AC clamp meter featuring an integrated non-contact voltage detector with an LED alert. It includes standard multimeter functions such as AC/DC voltage, resistance, capacitance, frequency, temperature, duty cycle, diode, and continuity testing. The device features a 4000-count backlit LCD display and a 1.2-inch jaw size capable of measuring conductors up to 350MCM.
| Display counts | 4000 |
|---|---|
| AC Current Range | 40.00A, 400.0 |
| Temperature Range | -4 to 1400°F (-20 to 760°C) |
| Duty Cycle Range | 0.5 to 99.0% |
| Dimensions | 7.9x2.6x1.5" (200x66x37mm) |
The MA410 has a 1.2" (30mm) jaw size.
Yes, it includes a built-in non-contact voltage detector with an LED alert.
It comes with test leads, a general purpose Type K bead wire temperature probe, two AAA batteries, and a carrying case.
