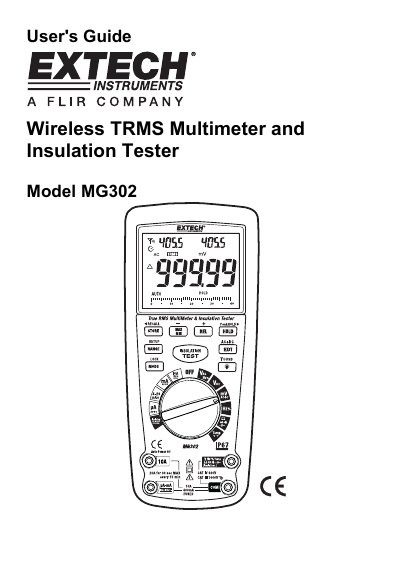

EXTECH MG302 Wireless TRMS Multimeter User's Guide
The document is a user's guide for the EXTECH Model MG302, a wireless TRMS multimeter and insulation tester manufactured by A FLIR Company. It details the device's capabilities, including AC/DC voltage, current, resistance, capacitance, frequency, duty cycle, diode test, insulation resistance, continuity, and thermocouple temperature measurements.
The guide provides comprehensive operating instructions for various measurement modes such as DC Voltage, AC Voltage (including Frequency and Duty Cycle), mV Voltage, Current (AC/DC), Resistance, Capacitance, Diode Test, Continuity, Insulation Resistance, and Temperature. It also includes safety warnings, control descriptions, and auxiliary display functions.
EXTECH MG302 specifications
| Display Count | 40,000 count LCD display |
|---|---|
| Input Protection Limits (Voltage) | 1000VDC/AC rms |
| Input Protection Limits (Current) | 500mA AC/DC |
| Surge Protection | 8kV peak per IEC 61010 |
All EXTECH MG302 documents by type
Day-to-day operation, settings and troubleshooting. Start here if the product is already set up.
Questions answered in these manuals
What is the maximum input voltage for this meter?
The maximum input protection limit is 1000VDC/AC rms.
How long can I measure up to 20A DC current?
Do not make 20A current measurements for longer than 30 seconds.
What is the insulation resistance range of the MG300?
The insulation resistance ranges from 0.001M Ω to 4000M Ω.
Does the MG300 support wireless data transmission?
Yes, it has a wireless USB interface that transmits measurement data to a PC.
