Start here

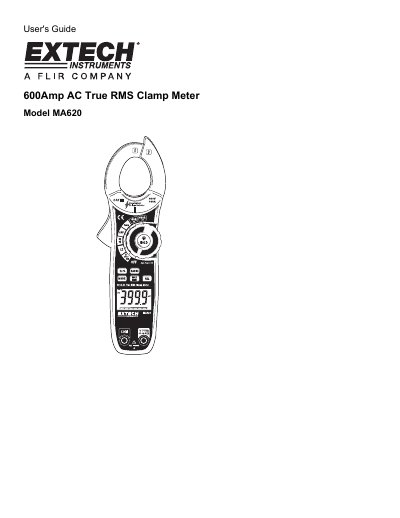

EXTECH 600Amp AC True RMS Clamp Meter Model MA620 user manual
The Extech MA620 is a heavy-duty clamp meter designed to measure AC current up to 600A, as well as AC/DC voltage, resistance, capacitance, frequency, duty cycle, continuity, diode test, and temperature. It features non-contact voltage detection and autoranging capabilities for ease of use.
Read onlineEXTECH MA620 specifications
| Max AC Current Input | 600A |
|---|---|
| Max DC/AC Voltage Input | 600V |
| Resistance/Capacitance/Freq Max Input | 250V |
| Temperature Type | Type K |
Source: EXTECH 600Amp AC True RMS Clamp Meter Model MA620 user manual
All EXTECH MA620 documents by type
Day-to-day operation, settings and troubleshooting. Start here if the product is already set up.
Questions answered in these manuals
What is the maximum AC current measurement range?
The meter can measure up to 600A of AC current.
From: EXTECH 600Amp AC True RMS Clamp Meter Model MA620 user manual
Does this meter have non-contact voltage detection?
Yes, it includes a Non-Contact Voltage (NCV) detector feature.
From: EXTECH 600Amp AC True RMS Clamp Meter Model MA620 user manual
What is the difference between the MA620 and MA640?
The MA640 measures DC current, whereas the MA620 does not.
From: Extech MA620/MA640 600A True RMS Clamp Meter Product Leaflet
Does this meter measure non-sinusoidal waveforms?
Yes, it features True RMS for accurate readings of non-sinusoidal waveforms.
From: Extech MA620/MA640 600A True RMS Clamp Meter Product Leaflet
