Key facts
- Brand
- EXTECH
- Model
- CO210
- Industry
- Industrial
- Documents
- 2
- Languages
- EN
- Last added
- 2012-08-01
Start here

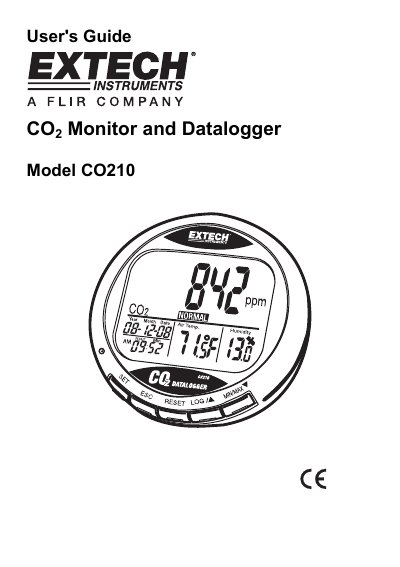

Extech CO210 CO2 Monitor and Datalogger User's Guide
The Extech CO210 is a handheld instrument designed to measure and datalog carbon dioxide (CO2), air temperature, and relative humidity. It features visible and audible alarms to warn users when CO2 levels exceed set limits, making it suitable for indoor air quality (IAQ) diagnosis. The device includes an LCD display showing real-time readings, date, time, and air quality status (GOOD, NORMAL, POOR).
Read onlineEXTECH CO210 specifications
| CO2 Range | 0 to 9999ppm |
|---|---|
| CO2 Accuracy | ±(5%rdg +50ppm) |
| Temperature Range | -10 to 60°C (14 to 140°F) |
| Humidity Range | 0.1 to 99.9% |
| Memory Capacity | Up to 15999 points |
| Sample Rate | 1 second to 4 hours-59 minutes-59 seconds |
| Power Supply | 5VDC (±10%), ≥ 500mA |
| Dimensions | 117x102x102mm (4.6x4x4") |
Source: Extech CO210 CO2 Monitor and Datalogger User's Guide
All EXTECH CO210 documents by type
Day-to-day operation, settings and troubleshooting. Start here if the product is already set up.
Questions answered in these manuals
How long does the CO2 sensor take to respond to changes?
It takes 2 minutes for the CO2 sensor to respond to operating environment changes.
What is the default CO2 alarm limit for the GOOD level?
The default upper limit for the GOOD level is 700ppm.
What parameters does the Extech CO210 measure?
The device measures Carbon Dioxide, Air Temperature, and Humidity.
From: Extech CO210 Desktop Indoor Air Quality CO2 Monitor/Datalogger Specifications Sheet
How many data points can the monitor store for each parameter?
It can datalog up to 5333 points for each parameter.
From: Extech CO210 Desktop Indoor Air Quality CO2 Monitor/Datalogger Specifications Sheet
