Key facts
- Brand
- EXTECH
- Model
- DV50
- Industry
- Industrial
- Documents
- 2
- Languages
- EN
- Last added
- 2012-08-01
Start here

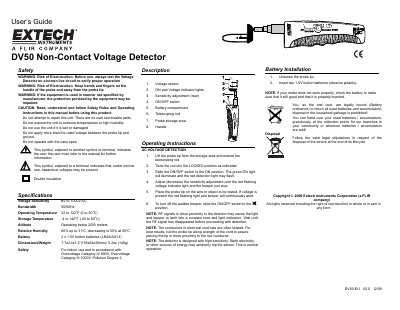

EXTECH EX613 DV50 Non-Contact Voltage Detector User Guide
The Extech DV50 is a non-contact voltage detector designed to detect AC voltages between 6V and 1000V. The device features a telescoping rod with an extendable probe tip, allowing users to test wires or objects without direct contact. It includes visual indicators (green ON light and red detection light) and an audible beeper to alert the user when voltage is present.
Read onlineEXTECH DV50 specifications
| Voltage Sensitivity | 6V to 1000V AC |
|---|---|
| Bandwidth | 50/60Hz |
| Operating Temperature | 32 to 122°F (0 to 50°C) |
| Storage Temperature | -4 to 140°F (-20 to 60°C) |
| Battery Type | 2x 1.5V button batteries (LR44/AG13) |
| Dimensions | 7.7x2.4x1.2"(195x62x30mm) |
| Weight | 5.2oz (148g) |
Source: EXTECH EX613 DV50 Non-Contact Voltage Detector User Guide
All EXTECH DV50 documents by type
Day-to-day operation, settings and troubleshooting. Start here if the product is already set up.
Questions answered in these manuals
What happens if RF signals are near the detector?
The light and beeper may latch into a constant tone and light indication.
From: EXTECH EX613 DV50 Non-Contact Voltage Detector User Guide
What batteries are required to power the DV50?
The device requires two 1.5V button batteries, specifically LR44/AG13.
From: EXTECH EX613 DV50 Non-Contact Voltage Detector User Guide
What is the maximum AC voltage this detector can measure?
The detector can detect AC voltage up to 1000VAC.
From: EXTECH DV50 Telescoping AC Voltage Detector Product Datasheet
What is the total reach distance of the telescoping probe?
The probe extends to a total reach of 39 inches (1 meter).
From: EXTECH DV50 Telescoping AC Voltage Detector Product Datasheet
