Start here

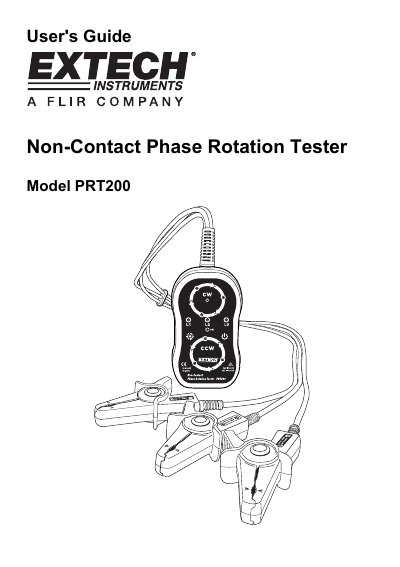

Extech PRT200 Non-Contact Phase Rotation Tester User Manual
The Extech PRT200 is a device used to quickly and accurately determine the phase rotation sequence of live three-phase circuits. It utilizes non-contact voltage detection technology, allowing users to connect to insulated wires without the uncertainty and difficulty associated with exposed high-voltage conductors.
The manual details safety precautions, instrument description, operation steps including LED indicators and buzzer signals for CW/CCW sequences, and maintenance procedures such as battery replacement using four 1.5V AA batteries. This manual is written in Chinese.
EXTECH PRT200 specifications
| Input Voltage Range | 75 to 1000VAC |
|---|---|
| Frequency Range | 45 to 65Hz |
| Maximum Wire Diameter | 33mm (1.3") |
| Probe Length | 1.5m (59") |
| Battery Type | 4 x 1.5V AA |
| Current Consumption | 15mA |
Source: Extech PRT200 Non-Contact Phase Rotation Tester User Manual
All EXTECH PRT200 documents by type
Day-to-day operation, settings and troubleshooting. Start here if the product is already set up.
Questions answered in these manuals
What indicates a clockwise phase sequence?
The CW LED flashes in the direction of the arrow and the buzzer sounds intermittently.
From: Extech PRT200 Non-Contact Phase Rotation Tester User Manual
What indicates a counter-clockwise phase sequence?
The CCW LED flashes in the direction of the arrow and the buzzer sounds continuously.
From: Extech PRT200 Non-Contact Phase Rotation Tester User Manual
How do I determine the phase sequence?
Connect the three non-contact alligator clips to the three phase power conductors; the CW or CCW LED and rotation LEDs will indicate the phase sequence.
From: Extech PRT200 Non-Contact Phase Rotation Tester User's Guide
How does the buzzer indicate the phase sequence?
The buzzer sounds intermittently for a clockwise sequence and continuously for a counter-clockwise sequence.
From: Extech PRT200 Non-Contact Phase Rotation Tester User's Guide
What voltage range can this tester measure?
The device tests up to 1000VAC with a frequency range of 45 to 65Hz.
From: Extech PRT200 Non-Contact Phase Sequence Tester User's Guide
How does the tester indicate if the phase sequence is reversed?
The beeper sounds continuously when a reversed phase is detected.
From: Extech PRT200 Non-Contact Phase Sequence Tester User's Guide
