Start here

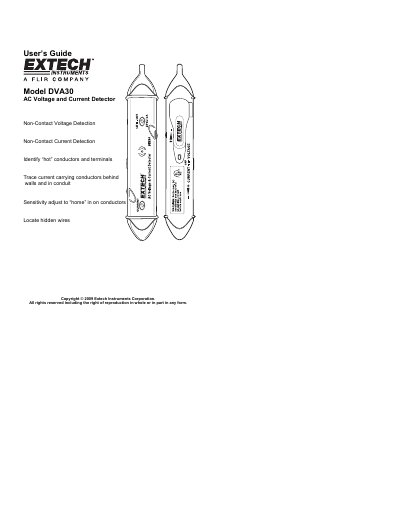

Extech DVA30 AC Voltage and Current Detector User's Guide
The Extech DVA30 is a handheld device designed for non-contact detection of AC voltage and current. It allows users to identify hot conductors and terminals while also tracing current-carrying wires behind walls or inside conduit by adjusting sensitivity levels.
The manual provides detailed instructions on safety precautions, battery replacement using four LR44 batteries, and step-by-step procedures for both voltage and current detection modes. It includes specifications such as a frequency range of 50 to 500Hz and operating temperatures between -10°C and 50°C.
EXTECH DVA30 specifications
| Voltage detection range | 12V to 600VAC |
|---|---|
| Current sensitivity | 200mA (0.2A) AC at 0.2" |
| Frequency range | 50 to 500Hz |
| Power supply | (4) LR44 batteries or equivalent |
Source: Extech DVA30 AC Voltage and Current Detector User's Guide
All EXTECH DVA30 documents by type
Day-to-day operation, settings and troubleshooting. Start here if the product is already set up.
Questions answered in these manuals
What is the voltage detection range of the DVA30?
The device detects AC voltages ranging from 12V to 600VAC.
From: Extech DVA30 AC Voltage and Current Detector User's Guide
How do I replace the batteries in the detector?
Turn power OFF, slide the pocket clip off to access the battery compartment, and replace four LR44 batteries.
From: Extech DVA30 AC Voltage and Current Detector User's Guide
What is the detection range for AC current?
The device detects non-contact AC current from 200mA to 1000A.
From: Extech DVA30 Non-Contact AC Voltage and Current Detector User Manual
What is the detection range for AC voltage?
The device detects non-contact AC voltage from 12V to 600VAC.
From: Extech DVA30 Non-Contact AC Voltage and Current Detector User Manual
