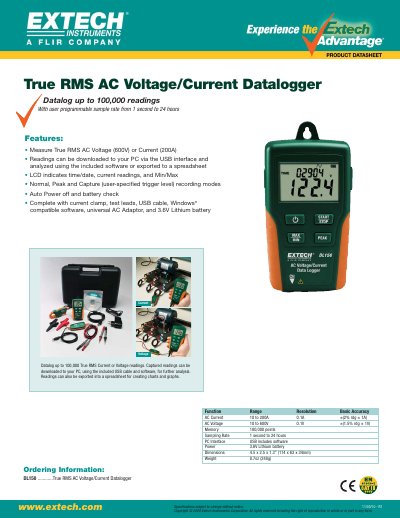

This document describes the features and functions of the DL150 True RMS AC Voltage/Current Datalogger from Extech Instruments Corporation, including the ability to record up to 100,000 readings, connect to a PC via USB interface for analysis using the included software, and an LCD display.
The EXTECH DL150 is a True RMS AC Voltage/Current Datalogger designed for capturing electrical data. It features the ability to log up to 100,000 readings with user-programmable sample rates ranging from 1 second to 24 hours.
Readings can be downloaded to a PC via USB interface using included software or exported to spreadsheets for analysis. The device includes an LCD display showing time, date, and Min/Max values, along with Normal, Peak, and Capture recording modes.
| AC Current Range | 10 to 200A |
|---|---|
| AC Voltage Range | 10 to 600V |
| Memory Capacity | 100,000 points |
| Sampling Rate Range | 1 second to 24 hours |
| Power Source | 3.6V Lithium battery |
The instrument can measure True RMS AC Voltage up to 600V.
The datalogger is rated to measure True RMS Current up to 200A.
The datalogger can store up to 100,000 readings.
The user can program the sample rate from 1 second to 24 hours.
