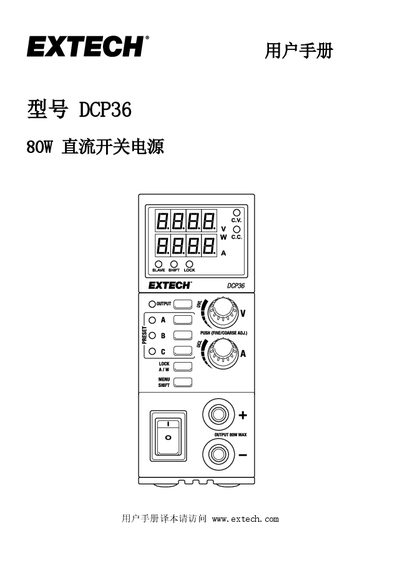

The Extech DCP36 user manual provides setup, operation, safety, programming, and troubleshooting instructions for the 80 W DC switching power supply.
The DCP36 is an 80 W laboratory‑grade DC switching power supply offering adjustable output from 0.5 V to 36 V and up to 5 A. This manual explains how to install, configure, and safely operate the unit, including master/slave networking and remote‑sense capabilities.
Key sections cover safety warnings, front‑panel functions, programming menus for voltage/current limits, master‑slave address setup, remote‑sense wiring, specifications, and a troubleshooting guide for common errors such as UVL/UCL and over‑current protection. This manual is written in Chinese.
| Input Power | 100 ~ 240 VAC (50‑60 Hz), 1.2 A |
|---|---|
| Output Voltage Range | 0.5 V – 36 V (auto‑range) |
| Maximum Power | 80 W |
| Power Factor | > 0.9 |
| Output Voltage Accuracy | ±(1.0 % reading + 15 digits) |
| Output Current Accuracy | ±(1.0 % reading + 15 digits) |
| Ripple and Noise | ≤ 35 mV p‑p |
| Dimensions | 330 × 127 × 53.5 mm (13 × 5 × 2 in) |
| Weight | 1.9 kg (4.2 lb) |
Up to 30 devices can be paralleled, with one unit acting as master and the others as slaves.
Turn off the power, disconnect the load, then turn the power back on. If the error persists, contact Extech support.
