Extech AM300 300A AC Analog Clamp Meter is a single-hand operation meter, which can measure AC/DC voltage and resistance. The clamp meter comes with test leads, 1.5V battery, and carrying case.

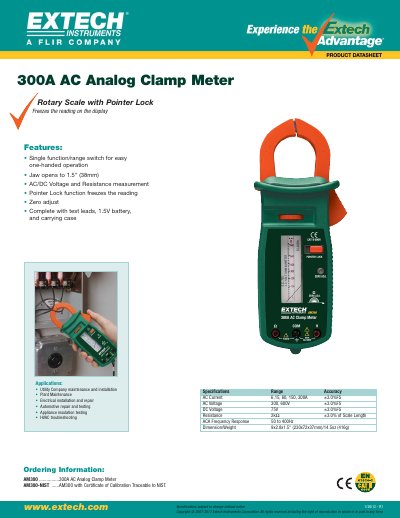

The EXTECH AM300 is an AC Analog Clamp Meter designed for single-function operation with a range switch. It features a rotary scale with a pointer lock function to freeze readings and includes a zero adjust capability. The device has a jaw opening of 1.5 inches (88mm) and is supplied with test leads, a 1.5V battery, and a carrying case.
| Jaw Opening | 1.5" (88mm) |
|---|---|
| AC Current Range | 6, 15, 60, 150, 300A |
| AC Voltage Range | 300, 600V |
| Resistance Accuracy | +3.0% of Scale Length |
| ACA Frequency Response | 50 to 400Hz |
| Dimensions | 9x2,8x1.5" (230x72x37mm) |
| Weight | 1 4 5oz (4169) |
The jaws open to a width of 1.5 inches.
Yes, it comes complete with test leads and a 1.5V battery.
The unit measures 9x2.8x1.5 inches.
