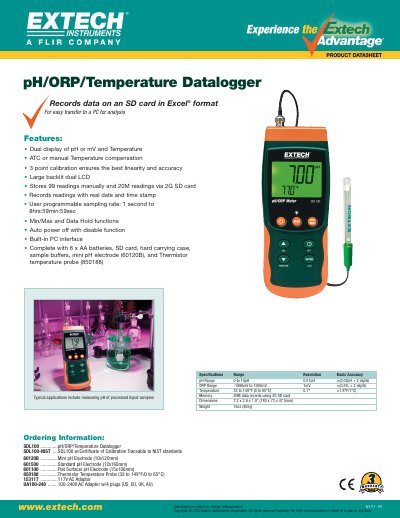

The document describes the features and characteristics of the SDL100 pH/ORP/Temperature Datalogger produced by Extech Instruments Corporation. The datalogger has a dual display for pH or mV and temperature, with automatic temperature compensation and three-point calibration for accuracy. It can store 99 manual readings and up to 20 million readings via an SD card, with real-time date and time stamping. The datalogger also has user-programmable sampling rate, min/max and data hold functions, auto power off, and built-in PC interface. It comes complete with AA batteries, SD card, hard carrying case, sample buffers, mini pH electrode, and thermistor temperature probe.
The Extech SDL100 is a portable datalogger designed to record pH, ORP (Oxidation-Reduction Potential), and temperature data. It features a large backlit dual LCD that displays both the measurement value and the corresponding temperature simultaneously.
Data can be stored on an SD card in Excel format for easy transfer to a PC for analysis. The device supports 3-point calibration, ATC or manual temperature compensation, and allows users to program sampling rates from 1 second up to nearly 9 hours.
| pH Range | 0 to 14 pH |
|---|---|
| ORP Range | -1999mV to 1999mV |
| Temperature Range | 32 to 149°F (0 to 65°C) |
| Memory Capacity | 20M data records using 2G SD card |
| Dimensions | 7.2 x 2.9 x 1.9" (182 x 73 x 47.5mm) |
| Weight | 16oz (455g) |
The device records data on an SD card in Excel®format for easy transfer to a PC.
The sampling rate can be programmed from 1 second to 8hrs:59min:59sec.
The package includes 6 x AA batteries, an SD card, a hard carrying case, sample buffers, and electrodes.
