OP200 is a low offset, low power dual operational amplifier with extremely low input offset voltage and drift, ensuring normal operation over the entire military temperature range. The OP200's open-loop gain exceeds 5,000,000 into a 10 kW load; input bias current is under 2 nA; CMR is over 120 dB and PSRR below 1.8 mV/V.

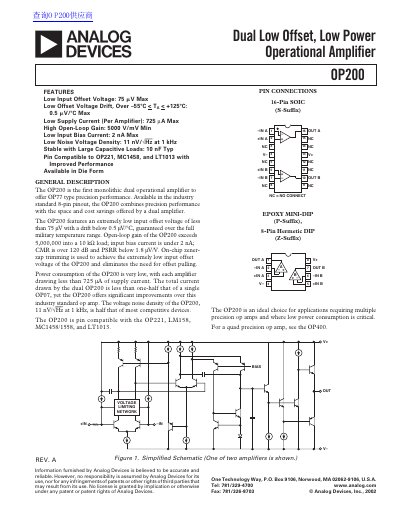

The document is a technical datasheet for the Analog Devices OP200, a monolithic dual operational amplifier designed to offer OP77 type precision performance in an industry-standard 8-pin pinout. It combines high open-loop gain with low power consumption, drawing less than 725 µA per amplifier.
| Open-Loop Gain | 5000 V/mV |
|---|---|
| Input Bias Current (Max) | 2 nA |
| Noise Voltage Density | 11 nV/√Hz |
Yes, it is pin compatible to OP221, MC1458, and LT1013.
The device is available in Die Form (A), 8-Pin Hermetic DIP (Z), EPOXY MINI-DIP (P), and 16-Pin SOIC (S).
The OP200A operates from -55°C to +125°C.
