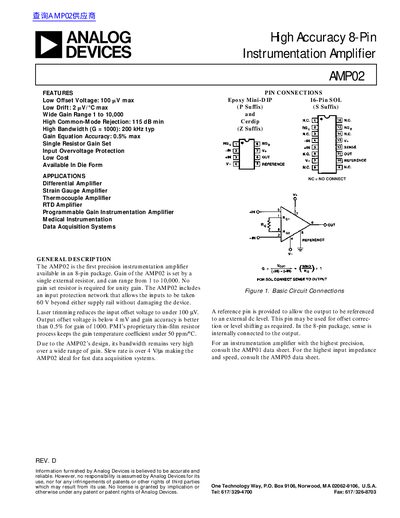

ANALOG DEVICES AMP02 High Accuracy 8-Pin Instrumentation Amplifier handbook
The AMP02 is a high-accuracy instrumentation amplifier available in various packages including Plastic DIP, Cerdip, SOIC, and Die form. It features a single external resistor for setting the gain, which can range from 1 to 10,000, with no resistor required for unity gain. The device includes an input protection network allowing inputs to be taken up to 60 V beyond either supply rail without damage.
Read onlineAnalog Devices AMP02 specifications
| Input Offset Voltage (Max) | 100 pV @ +25°C |
|---|---|
| Gain Range | 1 to 10,000 |
| Common-Mode Rejection (Min) | 115 dB |
| Bandwidth @ G=1000 | 200 kHz typ |
| Gain Equation Accuracy | 0.5% max |
Source: ANALOG DEVICES AMP02 High Accuracy 8-Pin Instrumentation Amplifier handbook
All Analog Devices AMP02 documents by type
Ratings, dimensions and ordering codes, for selection and design work.
Questions answered in these manuals
How is the gain of the AMP02 set?
The gain is set by a single external resistor, and no gain set resistor is required for unity gain.
From: ANALOG DEVICES AMP02 High Accuracy 8-Pin Instrumentation Amplifier handbook
What is the maximum input overvoltage protection?
The inputs can be taken up to 60 V beyond either supply rail without damaging the device.
From: ANALOG DEVICES AMP02 High Accuracy 8-Pin Instrumentation Amplifier handbook
What gain range does the AMP02 support?
The AMP02 gain can be set from 1 to 10 000 using a single external resistor.
From: Analog Devices AMP02 Instrumentation Amplifier Datasheet
How much common‑mode rejection does the AMP02 provide at high gain?
At a gain of 1000 the device offers at least 115 dB of common‑mode rejection.
From: Analog Devices AMP02 Instrumentation Amplifier Datasheet
What is the gain range of the AMP02?
The AMP02 can be set to a gain from 1 up to 10 000.
From: Analog Devices AMP02 Instrumentation Amplifier Datasheet
How wide is the bandwidth at high gain?
At a gain of 1000 the bandwidth is about 200 kHz.
From: Analog Devices AMP02 Instrumentation Amplifier Datasheet
