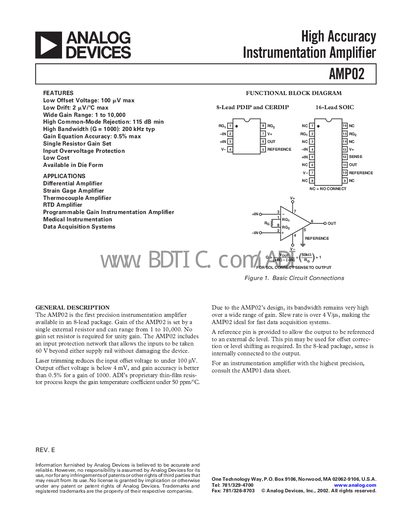

This file introduces AMP02 high accuracy instrumentation amplifier, including the functions, features and performance of this product.
The AMP02 instrumentation amplifier from Analog Devices offers low offset voltage (as low as 20 pV), low drift, and a wide gain range of 1 to 10 000. It features a single‑resistor gain setting, input over‑voltage protection up to ±60 V, and a high common‑mode rejection of 115 dB.
The device is supplied in 8‑lead PDIP, 8‑lead CERDIP, and 16‑lead SOIC packages, with typical bandwidth of 200 kHz at a gain of 1000 and a slew rate over 4 V/µs, making it suitable for fast data‑acquisition and precision measurement applications.
| Gain Range | 1 to 10 000 |
|---|---|
| Bandwidth at Gain = 1000 | 200 kHz (typ) |
The AMP02 can be set to a gain from 1 up to 10 000.
At a gain of 1000 the bandwidth is about 200 kHz.
