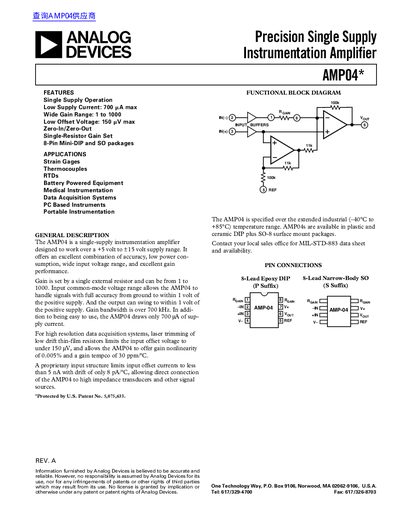

Analog Devices AMP04 Precision Single Supply Instrumentation Amplifier Datasheet
The AMP04 is a single-supply instrumentation amplifier designed to operate over a +5 volt to +15 volt supply range. It features an excellent combination of accuracy, low power consumption (700 µA max), and wide input voltage range. Gain is set by a single external resistor with a range from 1 to 1000.
Read onlineAnalog Devices AMP04 specifications
| Supply Current (Max) | 700 µA |
|---|---|
| Gain Range | 1 to 1000 |
| Input Offset Voltage (Max) | 150 µV |
| Gain Bandwidth | Over 700 kHz |
| Operating Temperature Range | -40°C to +85°C |
Source: Analog Devices AMP04 Precision Single Supply Instrumentation Amplifier Datasheet
All Analog Devices AMP04 documents by type
Ratings, dimensions and ordering codes, for selection and design work.
Questions answered in these manuals
What are the applications for the AMP04?
It is designed for strain gages, thermocouples, RTDs, battery powered equipment, medical instrumentation, and data acquisition systems.
From: Analog Devices AMP04 Precision Single Supply Instrumentation Amplifier Datasheet
How is the gain of the AMP04 set?
The gain can be set from 1 to 1000 using a single external resistor.
From: Analog Devices AMP04 Precision Single Supply Instrumentation Amplifier Datasheet
What gain range does the AMP04 support?
The AMP04 can be programmed for a gain from 1 to 1000 using a single external resistor.
What is the common‑mode rejection ratio at high gain?
The device provides a common‑mode rejection ratio greater than 90 dB at gains of 100 or higher.
