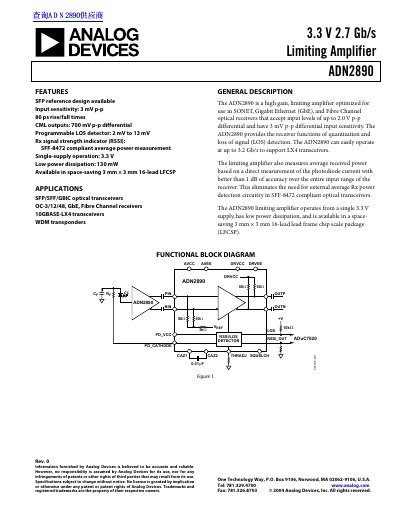

Analog Devices ADN2890 3.3 V 2.7 Gb/s Limiting Amplifier Datasheet
The ADN2890 is a high gain, limiting amplifier optimized for use in SONET, Gigabit Ethernet (GbE), and Fibre Channel optical receivers. It accepts input levels of up to 2.0 V p-p differential and has an input sensitivity of 3 mV p-p differential. The device provides receiver functions including quantization and loss of signal (LOS) detection, and can operate at data rates up to 3.2 Gb/s to support LX4 transceivers.
Read onlineAnalog Devices ADN2890 specifications
| Input Sensitivity | 3 mV p-p |
|---|---|
| Input Data Rate | 2700 Mb/s |
| Supply Voltage | 3.3 V |
| Operating Temperature Range | -40°C to +85°C |
| Output Rise and Fall Time | 80 ps |
Source: Analog Devices ADN2890 3.3 V 2.7 Gb/s Limiting Amplifier Datasheet
All Analog Devices ADN2890 documents by type
Ratings, dimensions and ordering codes, for selection and design work.
Questions answered in these manuals
What is the input sensitivity of the ADN2890?
The input sensitivity is 3 mV p-p differential.
From: Analog Devices ADN2890 3.3 V 2.7 Gb/s Limiting Amplifier Datasheet
What is the maximum input data rate supported?
The device supports input data rates up to 2700 Mb/s.
From: Analog Devices ADN2890 3.3 V 2.7 Gb/s Limiting Amplifier Datasheet
What is the input sensitivity of the ADN2890?
The ADN2890 has an input sensitivity of 3 mV p‑p.
What supply voltage does the ADN2890 require?
It operates from a single 3.3 V supply.
