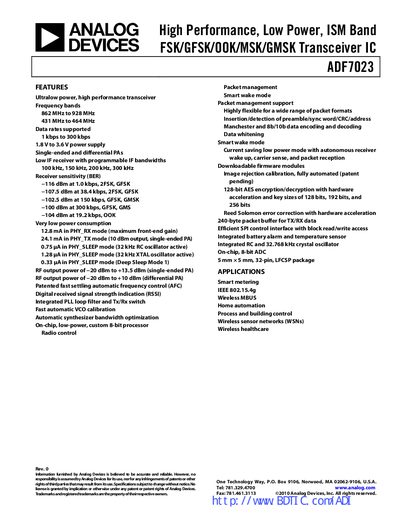

ADF7023 is a high performance, low power, ISM band FSK/GFSK/OOK/MSK/GMSK transceiver IC.
The ADF7023 is a highly integrated 2FSK/GFSK/OOK/MSK/GMSK transceiver designed for ISM‑band operation. It supports data rates from 1 kbps to 300 kbps, operates from a 1.8 V to 3.6 V supply, and offers both single‑ended and differential power amplifiers with output power from –20 dBm to +13.5 dBm. Features include an on‑chip 8‑bit processor, smart‑wake mode, AES encryption, Reed‑Solomon coding, and flexible packet management.
The device is supplied in a 5 mm × 5 mm, 32‑lead LFCSP package and includes extensive registers for radio control, timing, and low‑power operation. It is targeted at smart‑metering, home automation, wireless sensor networks, and other low‑power wireless applications.
| Frequency range | 862 MHz‑928 MHz, 431 MHz‑464 MHz |
|---|---|
| Supported data rates | 1 kbps‑300 kbps |
| Supply voltage | 1.8 V‑3.6 V |
| Receiver sensitivity (BER) | ‑116 dBm at 1 kbps, 2FSK, GFSK |
| Transmit output power | ‑20 dBm to +13.5 dBm (single‑ended PA) |
| Package | 5 mm × 5 mm, 32‑lead LFCSP |
It operates in the 862 MHz‑928 MHz and 431 MHz‑464 MHz ISM bands.
The device works from 1.8 V to 3.6 V.
Yes, it includes a hardware‑accelerated AES engine with 128‑bit block encryption and key sizes of 128, 192, and 256 bits.
