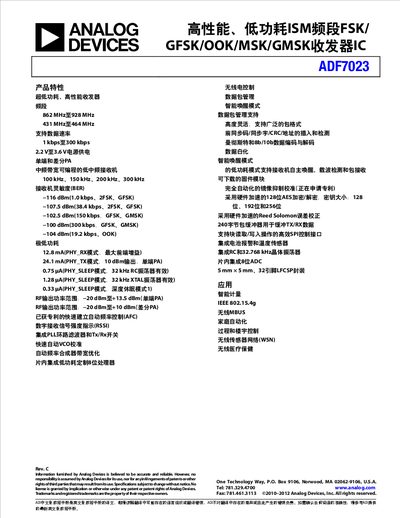

This datasheet describes the ADF7023, a low-power, high-performance ISM band transceiver IC supporting FSK/GFSK/OOK/MSK/GMSK modulation.
The ADF7023 is a low-power, high-performance, high-integration transceiver IC operating in the 862 MHz to 928 MHz and 431 MHz to 464 MHz frequency bands. It supports data rates from 1 kbps to 300 kbps and is suitable for applications such as smart metering, wireless MBUS, home automation, and wireless sensor networks. The device features a programmable RF output power range from -20 dBm to +13.5 dBm (single-ended PA) or +10 dBm (differential PA) and operates on a supply voltage of 2.2 V to 3.6 V. This manual is written in Chinese.
| Operating Frequency Bands | 862 MHz to 928 MHz, 431 MHz to 464 MHz |
|---|---|
| Supported Data Rates | 1 kbps to 300 kbps |
| Supply Voltage | 2.2 V to 3.6 V |
| RF Output Power (Single-ended PA) | -20 dBm to +13.5 dBm |
| RF Output Power (Differential PA) | -20 dBm to +10 dBm |
| Receiver Sensitivity (1.0 kbps, 2FSK, GFSK) | -116 dBm |
| Receiver Sensitivity (300 kbps, GFSK, GMSK) | -100 dBm |
| Sleep Current (32 kHz RC Oscillator) | 0.75 µA |
| Sleep Current (32 kHz XTAL Oscillator) | 1.28 µA |
| Deep Sleep Current | 0.33 µA |
| Package | 5 mm x 5 mm, 32-pin LFCSP |
The device supports 2FSK, GFSK, OOK, MSK, and GMSK modulation formats.
The device operates on a supply voltage range of 2.2 V to 3.6 V.
Yes, it includes an integrated low-power custom 8-bit processor for radio control and packet management.
It supports hardware-accelerated 128-bit AES encryption/decryption with key sizes of 128, 192, and 256 bits.
