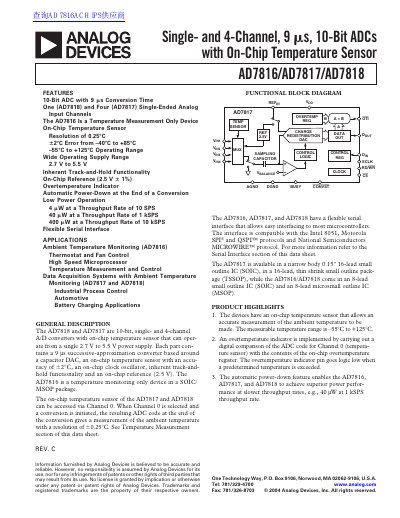

Analog Devices AD7816/AD7817/AD7818 10-Bit ADC Datasheet
The document describes three related devices: the AD7816 (temperature monitoring only), the AD7817 (single-ended analog input channel), and the AD7818 (four single-ended analog input channels). All parts feature a 9 µs conversion time, an on-chip temperature sensor with 0.25°C resolution, and operate from a wide supply range of 2.7 V to 5.5 V.
Read onlineAnalog Devices AD7818 specifications
| Resolution | 10 Bits |
|---|---|
| Conversion Time (Channels) | 9 µs max |
| Operating Supply Range | 2.7 V to 5.5 V |
| Temperature Resolution | 0.25°C/LSB |
| On-Chip Reference Voltage | 2.5 V |
Source: Analog Devices AD7816/AD7817/AD7818 10-Bit ADC Datasheet
All Analog Devices AD7818 documents by type
Ratings, dimensions and ordering codes, for selection and design work.
Questions answered in these manuals
Which protocol is compatible with the serial interface?
The interface is compatible with Intel 8051, Motorola SPI, and National Semiconductors MICROWIRE protocols.
From: Analog Devices AD7816/AD7817/AD7818 10-Bit ADC Datasheet
What is the maximum operating supply voltage range?
The devices operate from a single power supply ranging from 2.7 V to 5.5 V.
From: Analog Devices AD7816/AD7817/AD7818 10-Bit ADC Datasheet
What is the supply voltage range for the AD7818?
The AD7818 operates from a single supply voltage of 2.7 V to 5.5 V.
From: Analog Devices AD7816/AD7817/AD7818 10‑Bit ADC Datasheet Rev C
How many analog input channels does the AD7818 provide?
The AD7818 provides four single‑ended analog input channels.
From: Analog Devices AD7816/AD7817/AD7818 10‑Bit ADC Datasheet Rev C
