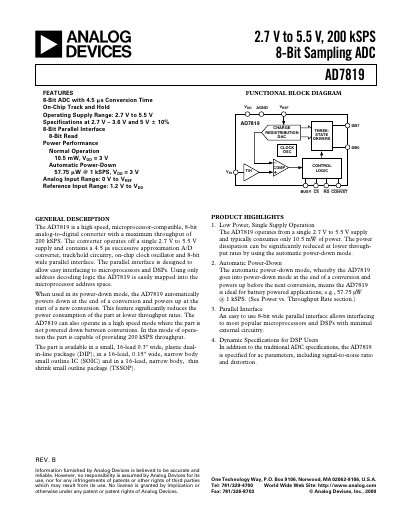

Analog Devices AD7819 Datasheet
The AD7819 is a high‑speed, microprocessor‑compatible 8‑bit analog‑to‑digital converter offering up to 200 kSPS throughput. It operates from a single 2.7 V to 5.5 V supply and includes on‑chip track‑and‑hold, a charge‑redistribution DAC, and an 8‑bit parallel interface for easy connection to microprocessors and DSPs.
The device features automatic power‑down to reduce consumption in low‑throughput applications, and it is available in three package types: 16‑lead DIP, SOIC, and TSSOP. Detailed specifications cover dynamic performance, power consumption, timing, and absolute maximum ratings.
Analog Devices AD7819 specifications
| Operating Supply Range | 2.7 V to 5.5 V |
|---|---|
| Resolution | 8 Bits |
| Conversion Time | 4.5 µs max |
| Automatic Power‑Down Power | 57.75 µW @ 1 kSPS (VDD = 3 V) |
| Input Voltage Range | 0 V to VREF |
Source: Analog Devices AD7819 Datasheet
All Analog Devices AD7819 documents by type
Ratings, dimensions and ordering codes, for selection and design work.
Questions answered in these manuals
What is the conversion time of the AD7819?
The conversion time is specified as 4.5 µs maximum.
What input voltage range does the AD7819 support?
The analog input can range from 0 V up to the reference voltage (VREF).
What supply voltage range does the AD7819 require?
The AD7819 operates from a single supply of 2.7 V to 5.5 V.
How does the AD7819 achieve low power consumption at low throughput?
In Mode 2 the device automatically powers down at the end of each conversion and powers up again when a new conversion starts.
