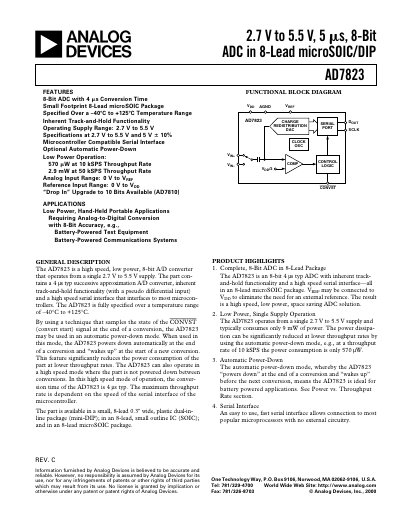

Analog Devices AD7823 Datasheet Rev C
This document provides a complete description of the AD7823 8‑bit analog‑to‑digital converter, including its high‑speed, low‑power operation from a single 2.7 V to 5.5 V supply. It covers functional block diagrams, key features, and typical applications such as battery‑powered test equipment.
The datasheet contains detailed specifications, timing characteristics, absolute maximum ratings, pin descriptions, circuit diagrams, and recommended connection schemes. It also explains the automatic power‑down mode, serial interface operation, and pseudo‑differential input configuration.
Analog Devices AD7823 specifications
| Supply Voltage Range | 2.7 V to 5.5 V |
|---|---|
| Resolution | 8 Bits |
| Conversion Time | 4 µs typ |
| Power Dissipation (normal operation) | 17.5 mW max |
| Power Dissipation (power‑down mode) | 5 µW max |
| Analog Input Voltage Range | 0 V to VREF |
| IDD at 133 kSPS | 3.5 mA max |
All Analog Devices AD7823 documents by type
Ratings, dimensions and ordering codes, for selection and design work.
Questions answered in these manuals
What does the automatic power‑down mode do?
When enabled, the AD7823 powers down automatically at the end of a conversion and wakes up on the next conversion start, reducing power consumption.
What is the maximum input leakage current?
The input leakage current is ±1 µA max.
What is the typical conversion time of the AD7823?
The AD7823 converts an input in about 4 µs (typical).
How much power does the AD7823 use at 10 kSPS?
At a throughput of 10 kSPS the device consumes roughly 570 µW.
