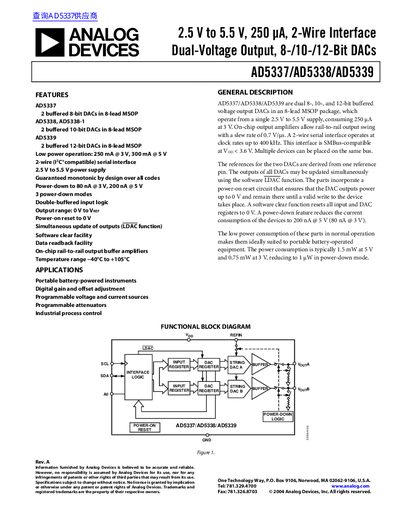

Analog Devices AD5337/AD5338/AD5339 Datasheet
Datasheet 24 pages · 374 KB · EN
The AD5337, AD5338, and AD5339 are dual buffered voltage output digital-to-analog converters (DACs) available in an 8-lead MSOP package. These devices operate from a single power supply ranging from 2.5 V to 5.5 V and consume low power, making them suitable for portable battery-powered instruments.
Read onlineAnalog Devices AD5337 specifications
| Resolution (AD5337) | 8 Bits |
|---|---|
| Resolution (AD5338) | 10 Bits |
| Resolution (AD5339) | 12 Bits |
| Power Supply Range | 2.5 V to 5.5 V |
| Operating Temperature (Industrial) | -40°C to +105°C |
All Analog Devices AD5337 documents by type
Datasheet 2
Ratings, dimensions and ordering codes, for selection and design work.
Questions answered in these manuals
What is the maximum SCL clock frequency?
The maximum SCL clock frequency is 400 kHz.
Are these DACs guaranteed monotonic?
Yes, they are guaranteed monotonic by design over all codes.
