This document introduces the technical specifications and advantages of the Varian V200 oil series pumps and V301 series pumps, including vent port height, foreline port height, vent port position, vent port thread/port, water fitting thread, inlet flange, foreline flange, vent port position, clean port position, technical specification, pump speed curve, etc.

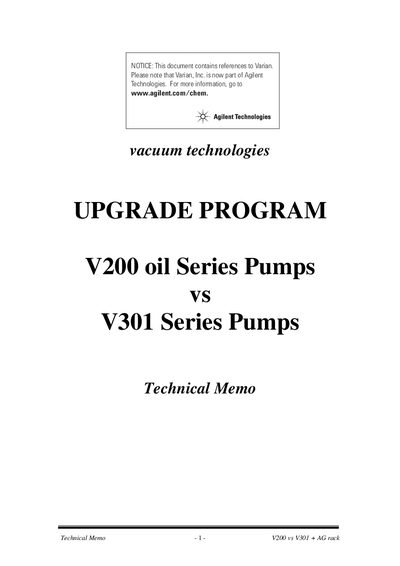

This document serves as a technical memo comparing the Agilent V200 Oil Series Pumps with the upgraded V301 Series Pumps. It outlines the physical differences between the two models for ISO100 and CF6 configurations, including outline drawings and dimensional data.
The text highlights that the V301 offers higher pumping speeds, better vacuum performance, and is completely oil-free, making it maintenance-free compared to the V200. Significant changes are noted regarding water cooling fittings, vent ports, and controller compatibility, requiring specific accessories or replacements for an upgrade.
| Total height (ISO100) | 273.50 mm (V200) / 174.0 mm (V301) |
|---|---|
| Pumping speed N2 | 200 l/s (V200) / 250 l/s (V301) |
| Pumping speed H2 | 150 l/s (V200) / 200 l/s (V301) |
| Ultimate pressure with rotary | < 1x10^-9 mbar |
| Power consumption | 170 W (V200) / 150 W (V301) |
The V301 features higher and newer technology, better vacuum performance, and is completely oil-free for clean vacuum.
No, the controller is not compatible and must be exchanged for either an on-board Navigator or AG Rack version.
