The TL-WN7200ND is a 150Mbps wireless adapter that features higher power and higher receive sensitivity to ensure reliable wireless connection through multiple walls or floors.
The TL-WN7200ND is a 150Mbps high‑power wireless USB adapter that delivers up to eight times the range of a standard adapter. Its high‑power design and 5dBi detachable omni‑directional antenna give strong penetrability through multiple walls and floors, allowing reliable high‑speed connections for gaming, video streaming, and internet sharing.

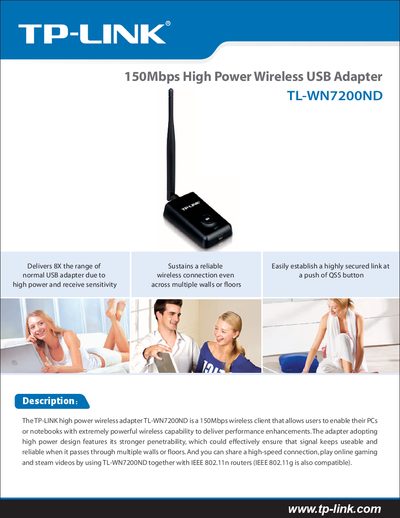

This manual includes a quick installation guide, detailed specifications (wireless rates, frequency range, modulation, security, and dimensions), supported operating systems, certification information, and safety guidelines. It also lists the bundled CD contents and related TP‑Link products.
| Wireless Signal Rates (11n) | 135/121.5/108/81/54/40.5/27/13.5Mbps |
|---|---|
| Wireless Signal Rates (11g) | 54/48/36/24/18/12/9/6Mbps |
| Frequency Range | 2.4‑2.4835 GHz |
| Modulation Type | OFDM/CCK/16‑QAM/64‑OQAM |
| Security | 64/128‑bit WEP, WPA/WPA2, WPA‑PSK/WPA2‑PSK (TKIP/AES) |
| Supported Operating System | Windows 2000/XP/Vista/7 |
| Operating Temperature | 0 °C ~ 40 °C (32 °F ~ 104 °F) |
| Dimensions | 3.6 × 2.4 × 1.0 in (90.8 × 60.8 × 24.5 mm) |
The adapter supports up to 150 Mbps wireless data rates.
It works with Windows 2000, Windows XP, Windows Vista, and Windows 7.
It supports 64/128‑bit WEP, WPA/WPA2, and WPA‑PSK/WPA2‑PSK (TKIP/AES).
The adapter includes a 5 dBi detachable omni‑directional antenna.
