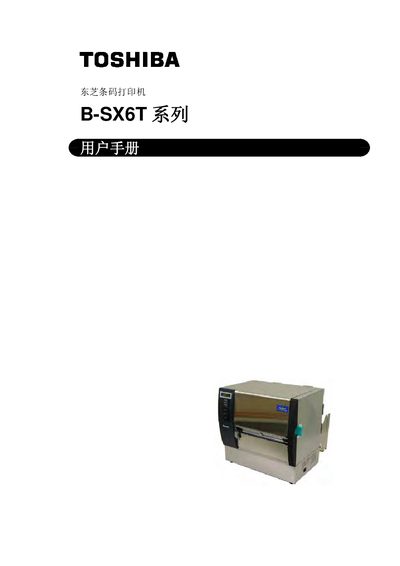

Toshiba B‑SX6T Series Barcode Printer User Manual
This manual provides complete guidance for the Toshiba B‑SX6T series barcode printer, including safety warnings, unpacking, hardware overview, and required accessories. It explains how to install the printer, connect power and communication cables, load media and ribbons, and configure network and serial settings.
The document also details routine maintenance, cleaning procedures, error messages, and troubleshooting steps, plus full technical specifications such as print resolution, speed, supported interfaces, and consumable information. Appendices contain LED indicators, interface pinouts, sample prints, and a glossary of terms. This manual is written in Chinese.
Toshiba B-SX6T specifications
| Print resolution | 12点/mm (305 dpi) |
|---|---|
| Print speed (3 in/s) | 76.2 mm/s (3 in/s) |
| Print speed (4 in/s) | 101.6 mm/s (4 in/s) |
| Print speed (8 in/s) | 203.2 mm/s (8 in/s) |
| Dimensions (W × H × D) | 417 mm × 282 mm × 395 mm (16.4 in × 11.1 in × 15.6 in) |
All Toshiba B-SX6T documents by type
Day-to-day operation, settings and troubleshooting. Start here if the product is already set up.
Questions answered in these manuals
How can I change the character code used for printing?
Press the PAUSE key until the <2>PARAMETER SET screen appears, then use the FEED or RESTART keys to select the desired character code and confirm with PAUSE.
What safety precautions should be taken when operating the printer?
Read and understand all warning symbols and safety notes before operating or maintaining the machine.
How do I load the ribbon into the printer?
Open the printer, place the ribbon on the designated holder, and follow the loading instructions in the manual.
