Key facts
- Brand
- Toshiba
- Model
- TA78DS05F
- Category
- Other Electronics
- Documents
- 2
- Languages
- EN
- Last added
- 2012-06-12
Start here

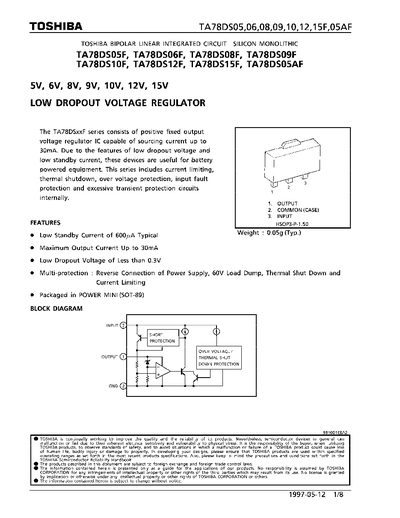

TOSHIBA TC78DS05F Data Sheet
Datasheet 8 pages · 311 KB · EN
The TA78DSxxF series consists of positive fixed output voltage regulator ICs capable of sourcing current up to 30mA. These devices are designed for battery-powered equipment due to their low dropout voltage and low standby current. The series includes internal protection circuits for reverse connection, overload, thermal shutdown, and excessive transients.
Read onlineToshiba TA78DS05F specifications
| Maximum Output Current | 30mA |
|---|---|
| Low Dropout Voltage | Less than 0.3V |
| Low Standby Current | 600A Typical |
| Operating Temperature | -40~85 °C |
| Storage Temperature | -55~150 °C |
| Package Type | POWER MINI (SOT-89) |
Source: TOSHIBA TC78DS05F Data Sheet
All Toshiba TA78DS05F documents by type
Datasheet 1
Ratings, dimensions and ordering codes, for selection and design work.
Other documents 1
Questions answered in these manuals
What protection features are included internally?
The devices include current limiting, thermal shutdown, over voltage protection, input fault protection, and excessive transient protection circuits.
What is the typical standby current?
The typical standby current is 600A.
