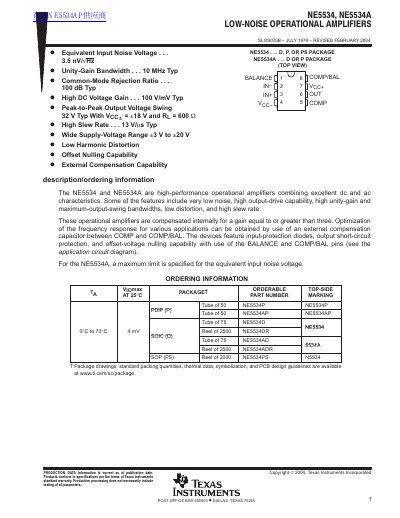

Texas Instruments NE5534/NE5534A Low-Noise Operational Amplifiers Datasheet
The document provides a comprehensive overview of the NE5534 and NE5534A low-noise operational amplifiers. Key features highlighted include very low noise performance with an equivalent input noise voltage of 3.5 nV/√Hz for the NE5534A, high DC voltage gain, and a wide supply-voltage range from +3 V to +20 V. The devices are internally compensated for gains equal to or greater than three but allow optimization via external compensation capacitors.
Read onlineTexas Instruments NE5534A specifications
| Equivalent Input Noise Voltage (NE5534A) | 3.5 nV/√Hz |
|---|---|
| Unity-Gain Bandwidth | 10 MHz Typ |
| Common-Mode Rejection Ratio | 100 dB Typ |
| High DC Voltage Gain | 100 V/mV Typ |
| Peak-to-Peak Output Voltage Swing | 32 V Typ |
| High Slew Rate | 13 V/μs Typ |
Source: Texas Instruments NE5534/NE5534A Low-Noise Operational Amplifiers Datasheet
All Texas Instruments NE5534A documents by type
Ratings, dimensions and ordering codes, for selection and design work.
Questions answered in these manuals
What is the maximum peak-to-peak output voltage swing when the supply voltage is +18 V?
The maximum peak-to-peak output voltage swing is 32 V under these conditions.
From: Texas Instruments NE5534/NE5534A Low-Noise Operational Amplifiers Datasheet
What is the typical unity-gain bandwidth of the NE5534 operational amplifier?
The typical unity-gain bandwidth is 10 MHz.
From: Texas Instruments NE5534/NE5534A Low-Noise Operational Amplifiers Datasheet
What is the maximum peak-to-peak output voltage swing for these operational amplifiers?
The maximum peak-to-peak output voltage swing is 32 V when the supply voltage is +18 V and the load resistance is 600 Ω.
From: Texas Instruments NE5534/NE5534A/SA5534/SA5534A Low-Noise Operational Amplifiers Datasheet
What is the typical unity-gain bandwidth of the NE5534 and SA5534 series?
The typical unity-gain bandwidth is 10 MHz.
From: Texas Instruments NE5534/NE5534A/SA5534/SA5534A Low-Noise Operational Amplifiers Datasheet
