The NE5534 is a high-performance operational amplifier produced by Texas Instruments, with very low noise, high output drive capability, high unity-gain and maximum output swing bandwidths, low distortion and high slew rate.

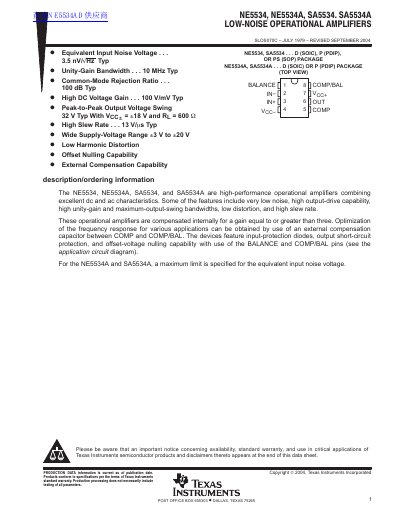

This document provides technical specifications and application information for the NE5534, NE5534A, SA5534, and SA5534A series of low-noise operational amplifiers. These devices combine excellent DC and AC characteristics, including very low noise voltage and high output-drive capability.
| Unity-Gain Bandwidth | 10 MHz Typ |
|---|---|
| High DC Voltage Gain | 100 V/mV Typ |
| Peak-to-Peak Output Voltage Swing | 32 V Typ |
| High Slew Rate | 13 V/us Typ |
| Supply-Voltage Range | +3 V to +20 V |
The maximum peak-to-peak output voltage swing is 32 V when the supply voltage is +18 V and the load resistance is 600 Ω.
The typical unity-gain bandwidth is 10 MHz.
The recommended operating free-air temperature range is 0°C to 70°C.
