Start here

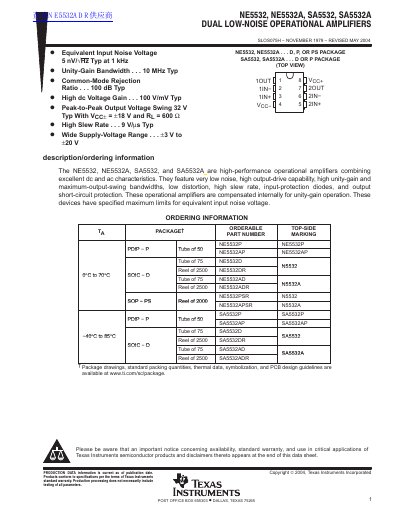

Texas Instruments NE5532/NE5532A/SA5532/SA5532A Datasheet
This document provides technical specifications for the NE5532, NE5532A, SA5532, and SA5532A series of high-performance operational amplifiers. These devices feature very low noise, high output-drive capability, and are internally compensated for unity-gain operation.
The datasheet details absolute maximum ratings such as supply voltage limits and operating temperatures, along with recommended operating conditions. It includes comprehensive electrical characteristics tables listing parameters like input offset voltage, slew rate, bandwidth, and common-mode rejection ratio.
Texas Instruments NE5532 specifications
| Equivalent Input Noise Voltage | 5 nV/VHz Typ at 1 kHz |
|---|---|
| Unity-Gain Bandwidth | 10 MHz Typ |
| Common-Mode Rejection Ratio | 100 dB Typ |
| High de Voltage Gain | 100 V/mV Typ |
| Peak-to-Peak Output Voltage Swing | 32 V Typ |
| High Slew Rate | 9 V/us Typ |
| Supply-Voltage Range | +3 V to +20 V |
Source: Texas Instruments NE5532/NE5532A/SA5532/SA5532A Datasheet
All Texas Instruments NE5532 documents by type
Ratings, dimensions and ordering codes, for selection and design work.
Questions answered in these manuals
What is the typical equivalent input noise voltage at 1 kHz?
The typical equivalent input noise voltage is 5 nV/VHz.
From: Texas Instruments NE5532/NE5532A/SA5532/SA5532A Datasheet
What is the typical unity-gain bandwidth?
The typical unity-gain bandwidth is 10 MHz.
From: Texas Instruments NE5532/NE5532A/SA5532/SA5532A Datasheet
What is the operating free-air temperature range for NE5532?
The operating free-air temperature range for NE5532 and NE5532A is 0°C to 70°C.
From: Texas Instruments NE5532/NE5532A/SA5532/SA5532A Datasheet
What is the typical input offset voltage at 25°C?
The typical input offset voltage (Vio) for NE5532/NE5532A is 0.5 mV, while for SA5532/SA5532A it is 10 mV.
From: Texas Instruments NE5532/NE5532A/SA5532/SA5532A Datasheet
