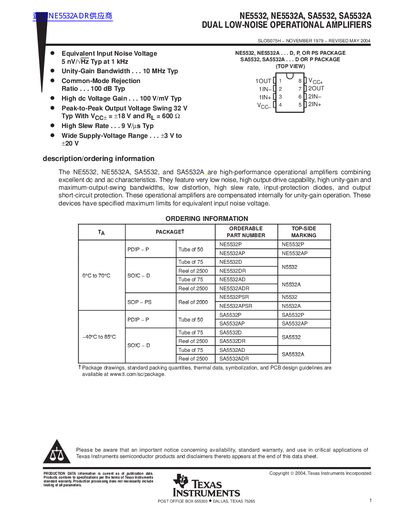

The NE5532, NE5532A, SA5532, and SA5532A are high-performance operational amplifiers combining excellent dc and ac characteristics. They feature very low noise, high output-drive capability, high unity-gain and maximum-output-swing bandwidths, low distortion, high slew rate, input-protection diodes, and output short-circuit protection. These operational amplifiers are compensated internally for unity-gain operation. These devices have specified maximum limits for equivalent input noise voltage.
The document provides a comprehensive overview of the NE5532, NE5532A, SA5532, and SA5532A series of high-performance operational amplifiers. Key features highlighted include very low noise, high output-drive capability, and internal compensation for unity-gain operation.
| Equivalent Input Noise Voltage | 5 nV/VHz Typ at 1 kHz |
|---|---|
| Unity-Gain Bandwidth | 10 MHz Typ |
| Common-Mode Rejection Ratio | 100 dB Typ |
| High Frequency Voltage Gain | 100 V/mV Typ |
| Peak-to-Peak Output Voltage Swing | 32 V (Typ) |
| High Slew Rate | 9 V/us Typ |
| Supply-Voltage Range | +3 V to +20 V |
The operating free-air temperature range for NE5532 and NE5532A is 0°C to 70°C.
The typical input offset voltage (Vio) for NE5532/NE5532A is 0.5 mV, while for SA5532/SA5532A it is 10 mV.
