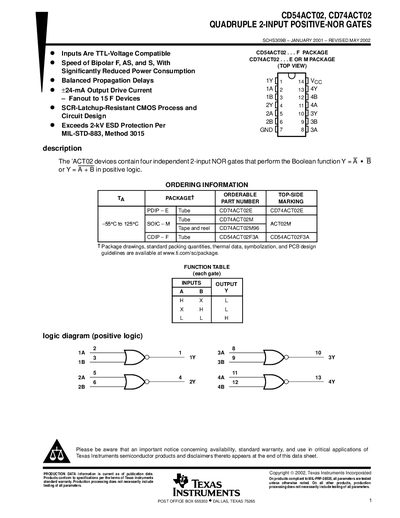

CD54ACT02 and CD74ACT02 are quadruple 2-input positive-NOR gates with TTL-voltage compatible inputs, balanced propagation delays, and significantly reduced power consumption. They are suitable for high-speed applications.
The CD54ACT02 and CD74ACT02 are Texas Instruments logic devices that contain four independent 2‑input positive‑NOR gates. They are designed for TTL‑compatible inputs and offer low power consumption with SCR‑latchup‑resistant CMOS process technology.
The document lists absolute maximum ratings, recommended operating conditions, detailed electrical characteristics, package options, mechanical dimensions, and ordering information. It also includes important notices regarding warranty, availability, and usage restrictions for safety‑critical, military, and automotive applications.
| Output drive current | ±24 mA |
|---|---|
| ESD protection | 2 kV |
Each device contains four independent 2‑input positive‑NOR gates.
The maximum output drive current is ±24 mA.
They provide at least 2 kV of ESD protection.
