This document describes the features and characteristics of Harris Semiconductor SCHS223A, including typical propagation delay, exceeding 2kV ESD protection, SCR-Latchup-Resistant CMOS process and circuit design, balanced propagation delays, etc.

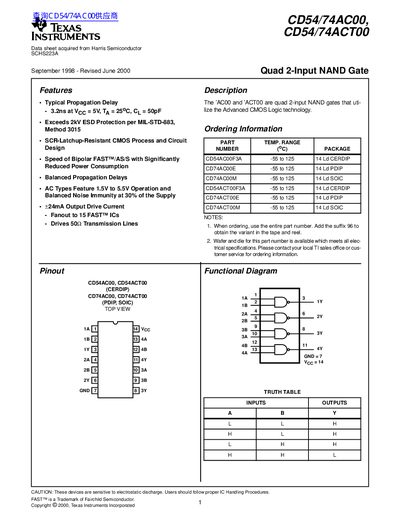

The CD54/74AC00 and CD54/74ACT00 are quad 2‑input NAND gates built with Advanced CMOS logic technology. The datasheet provides detailed electrical, thermal, and switching specifications, as well as ordering information and handling cautions.
Key sections include features, absolute maximum ratings, operating conditions, thermal information, DC electrical specifications, switching specifications, and an important notice regarding product warranties and liability.
| ESD Protection | Exceeds 2 kV per MIL‑STD‑883 |
|---|
The device exceeds 2 kV ESD protection according to MIL‑STD‑883 standards.
