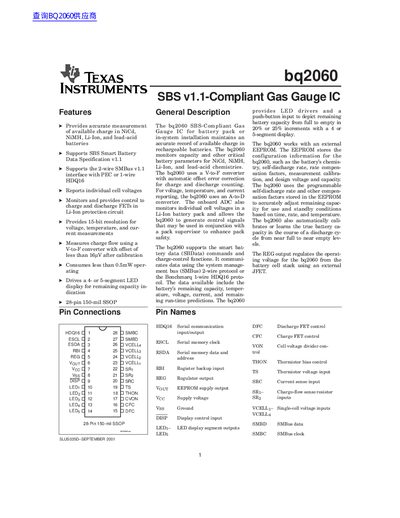

Texas Instruments bq2060 SBS v1.1-Compliant Gas Gauge IC Datasheet
The bq2060 is a smart battery data specification compliant integrated circuit designed to maintain an accurate record of available charge in rechargeable batteries. It supports the SBS v1.1 standard and communicates via the 2-wire SMBus or 1-wire HDQ16 protocols.
The device utilizes a voltage-to-frequency converter for measuring charge flow with high accuracy, including automatic offset error correction. It also features an analog-to-digital converter for reporting battery voltage, temperature, and current, as well as monitoring individual cell voltages in Li-Ion packs.
Texas Instruments BQ2060 specifications
| Supported Battery Chemistries | NiCd, NiMH, Li-Ion, and lead-acid |
|---|---|
| Interface Support | SMBus v1.1 or HDQ16 |
| Resolution | 15-bit |
| Operating Power Consumption | Less than 0.5mW |
| Package Type | 28-pin 150-mil SSOP |
Source: Texas Instruments bq2060 SBS v1.1-Compliant Gas Gauge IC Datasheet
All Texas Instruments BQ2060 documents by type
Ratings, dimensions and ordering codes, for selection and design work.
Questions answered in these manuals
What battery chemistries does the bq2060 support?
The bq2060 supports NiCd, NiMH, Li-Ion, and lead-acid batteries.
From: Texas Instruments bq2060 SBS v1.1-Compliant Gas Gauge IC Datasheet
Which communication protocols does the bq2060 support?
It supports the 2-wire SMBus v1.1 interface or the 1-wire HDQ16 protocol.
From: Texas Instruments bq2060 SBS v1.1-Compliant Gas Gauge IC Datasheet
What communication protocols does the bq2060 support?
The bq2060 supports the 2‑wire SMBus v1.1 interface and the 1‑Wire HDQ16 protocol.
What is the package type of the bq2060?
It is supplied in a 28‑pin 150‑mil SSOP package.
